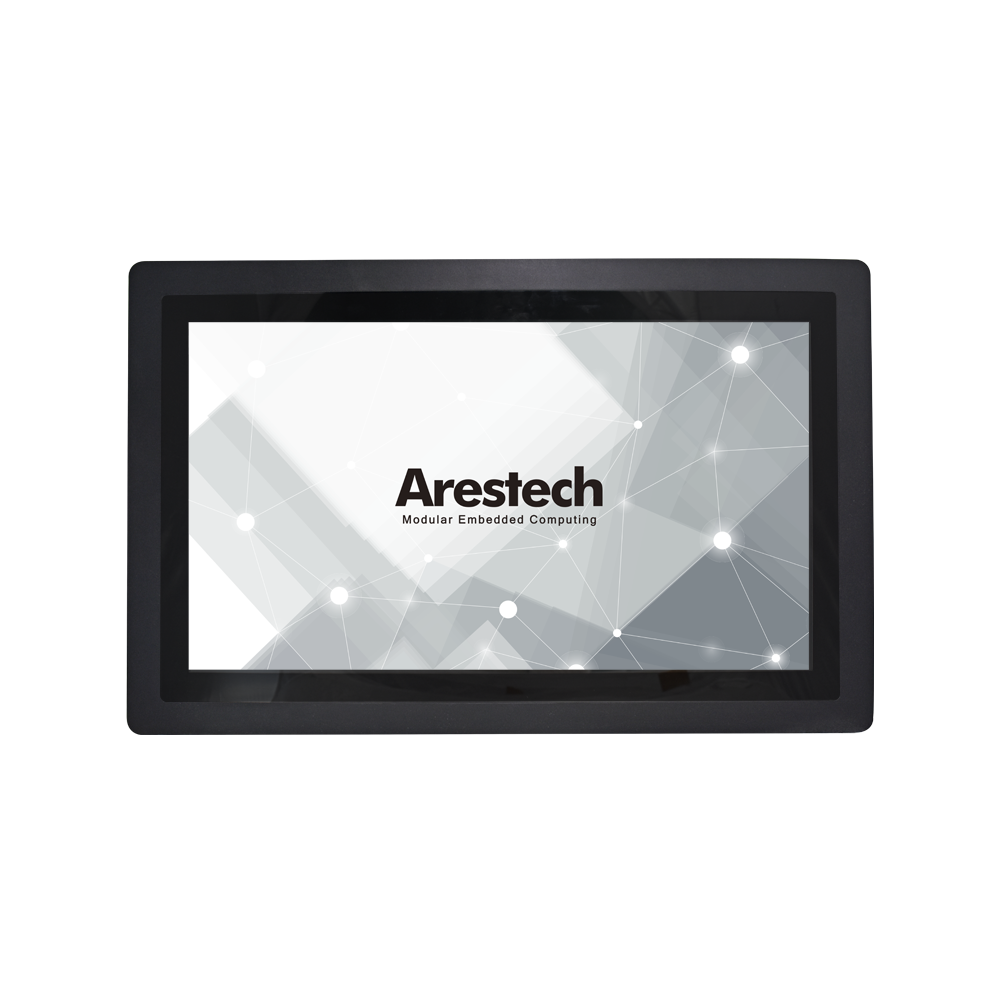

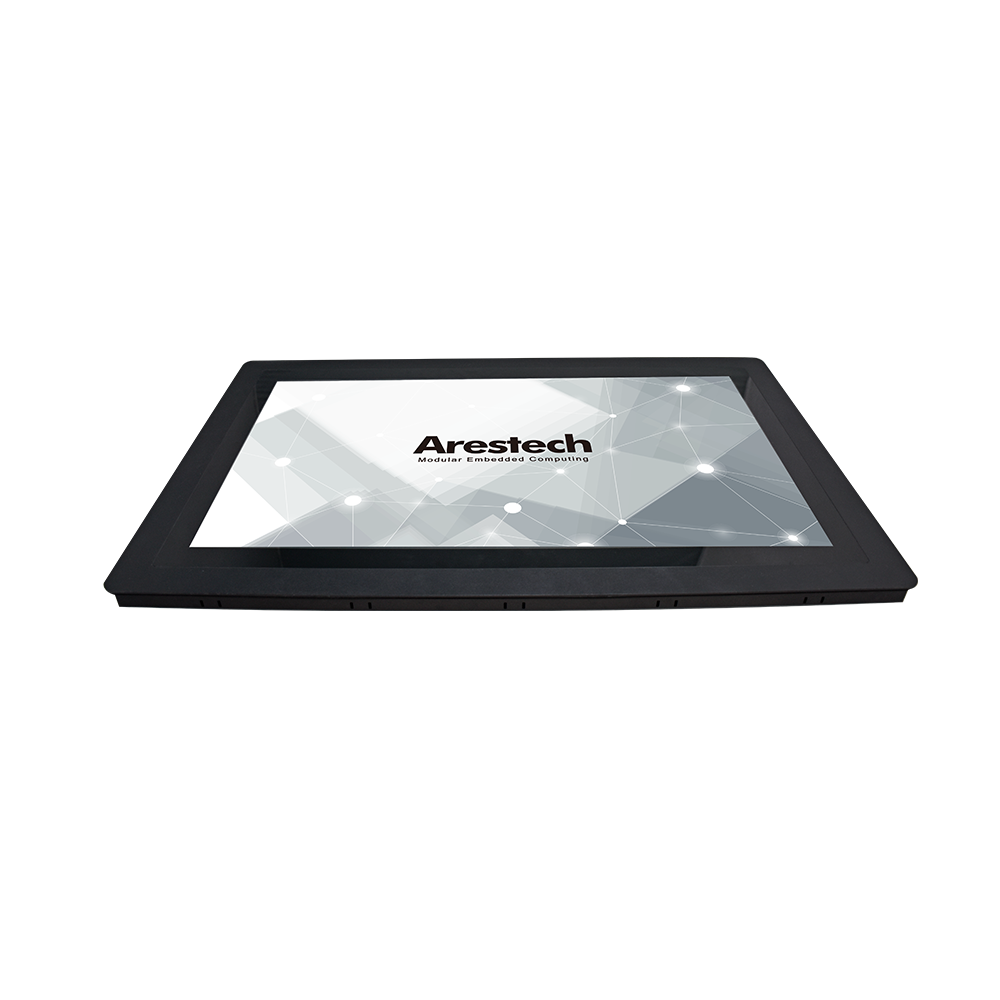

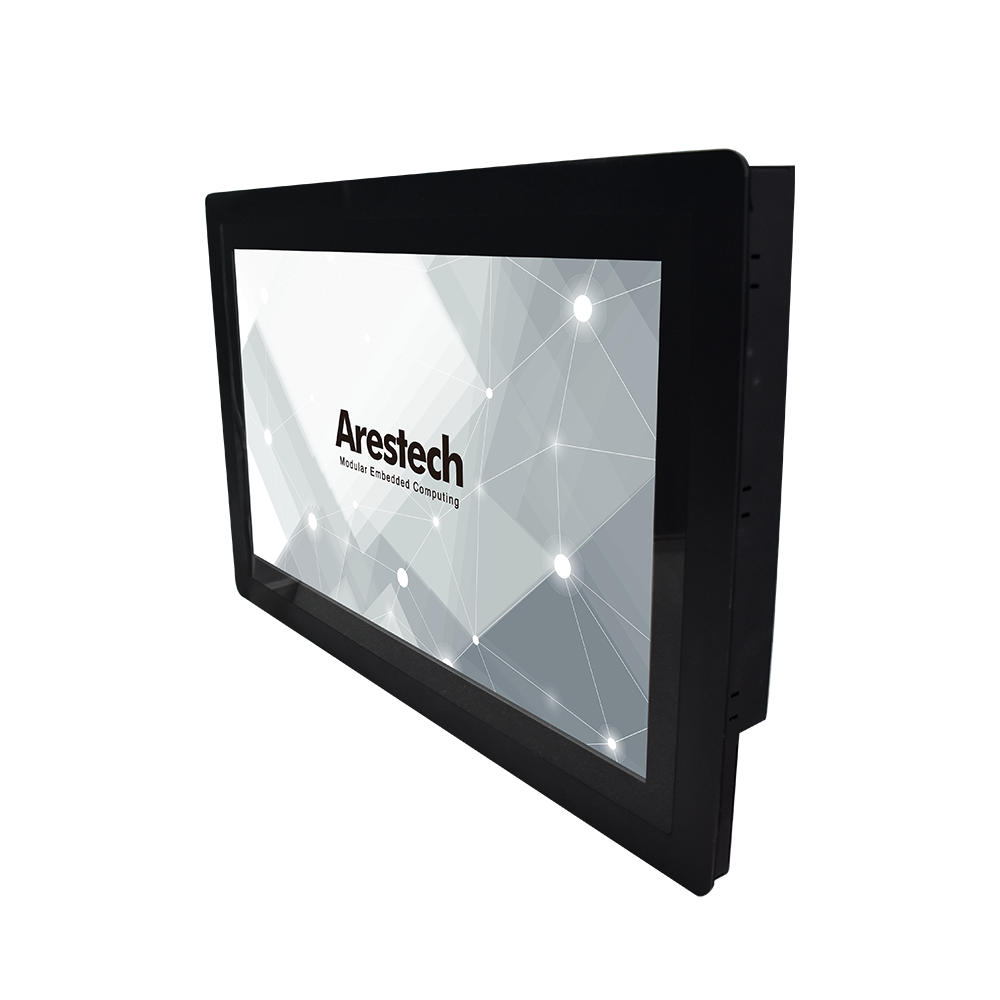

23.8" FHD LCD Panel up to 1920 x 1080 Resolution
Projected Capacitive Touch Technology
Supports 1 x HDMI and 1 x VGA
Touch Interface: 1 x USB and 1 x COM
0°C to 50°C Operating Temperature
12V DC Power Input with Terminal Block
Panel and VESA Mounting
特点
应用
Industrial HMI SolutionFactory AutomationPoint-of-sale (POS) / Point-of-interest (POI)ATM / Self-service / Kiosk Application|
Model |
TPM-3223PW-A1 |
||
|
Display |
Panel Size |
23.8” |
|
|
Panel Type |
LCD Panel |
||
|
Aspect Ratio |
16:9 |
||
|
Resolution |
1920 x 1080 (FHD) |
||
|
Viewing Angle |
178(H) x 178(V) |
||
|
Brightness |
250cd/m2 |
||
|
Contrast Ratio |
3000:1 |
||
|
Color Support |
16.7M |
||
|
Touchscreen |
Touchscreen Type |
Projected Capacitive (PCAP) |
|
|
Surface Hardness |
7Mohs |
||
|
Transparency |
90% (±3%) |
|
|
|

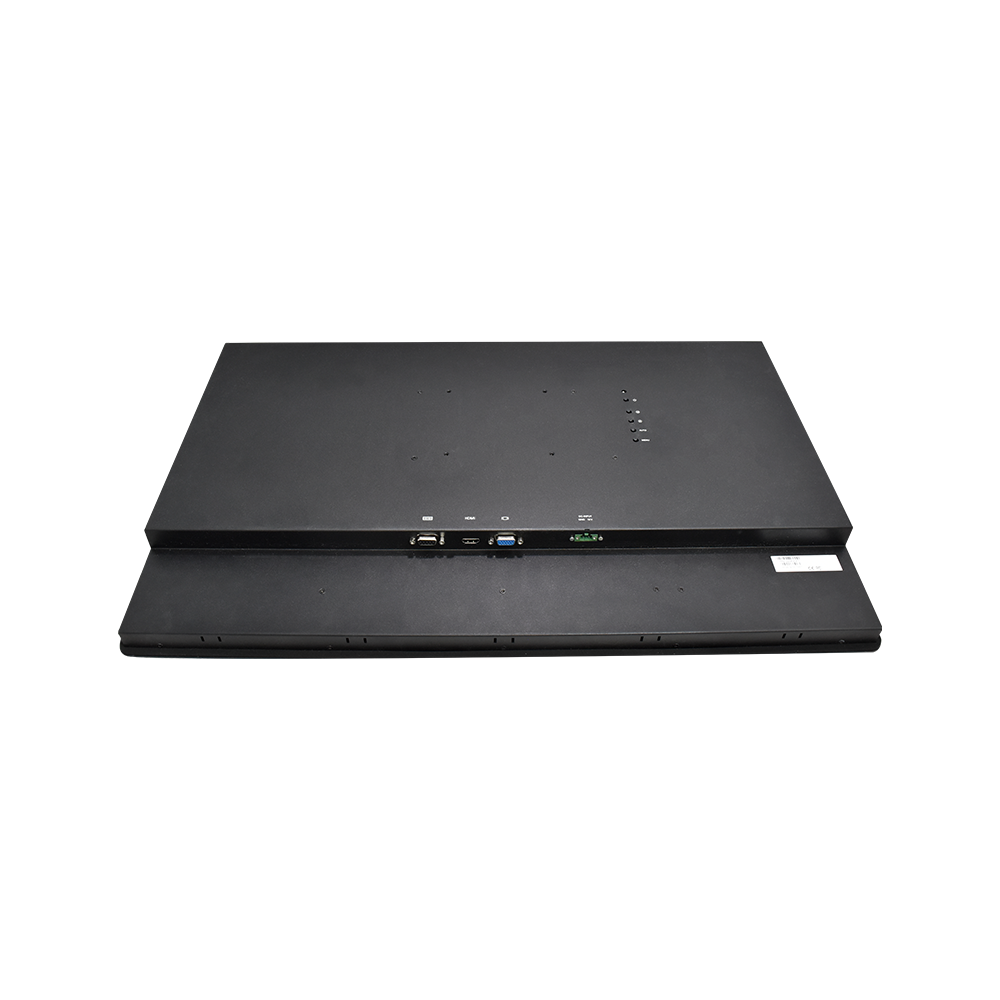

I/O Interface |
Video Interface |
1 x HDMI and 1 x VGA |
|
|
Touch Interface |
1 x USB and 1 x RS232
|
|
|
|
OSD Control |
Function Key |
Touch Monitor On/Off, Auto, Menu, Up and Down, Multi-language OSD |
|
|
Menu |
Brightness, Contrast, Color Adjust, Color Temp, Auto Color, Language |
||
|
Power |
Power Supply Voltage |
12V DC Input |
|
|
Power Connector Type |
1 x 2-pin Terminal Block Connector |
||
|
Power Adapter |
1 x Optional AC/DC 12V/5A, 60W Power Adapter |
||
|
Environment |
Operating Temperature |
0°C to 50°C |
|
|
Storage Temperature |
-20°C to 60°C |
||
|
Humidity |
10%~80% (non-condensing) |
||
|
Vibration |
IEC 60068-2-64: 1.5Grms, random, 5~500 Hz, 1hr/axis |
||
|
Shock |
IEC 60068-2-27: 15G, half-sine, 11ms duration |
||
|
General |
Certification |
CE / FCC |
|
|
Ingress Protection |
IP 54 Compliant Front Panel |
||
|
Material |
Front Panel Construction: Die-cast Flat Surface |
||
|
Mounting |
Panel Mounting / VESA Mounting (100 x 100mm) |
||
|
Dimensions (W x H x D) |
635.4 x 404.8 x 48mm |
||
|
Net Weight |
7.6kg |
||
Ordering Information
| Part No. | Description |
| TPM-3223PW-A1 | 23.8" 16:9 FHD (1920x1080), 250nits, PCAP Touchscreen |
|
|
Packing List
| Description | |
| 1 x TPM-3223PW-A1 | |
| 1 x USB Cable | |
| 1 x VGA Cable | |
| 6 x Panel Mounting Screws | |
Optional Items
Part No. Description
EA-PS-60W12VTB2xx-0111
Adapter AC/DC 12V 5A 60W
with 2-pin Terminal Block Plug 5.0mm Pitch
ACS-PS-US
Power Cable 3-pin, 180 cm,
USA Type
ACS-PS-EU
Power Cable 3-pin, 180 cm,
Euro Type
ACS-PS-CN
Power Cable 3-pin, 180 cm,
China Type
ACS-100-STD
VESA Table Stand
