Automation Panel PC

PPC-J217RW

PPC-J217RW

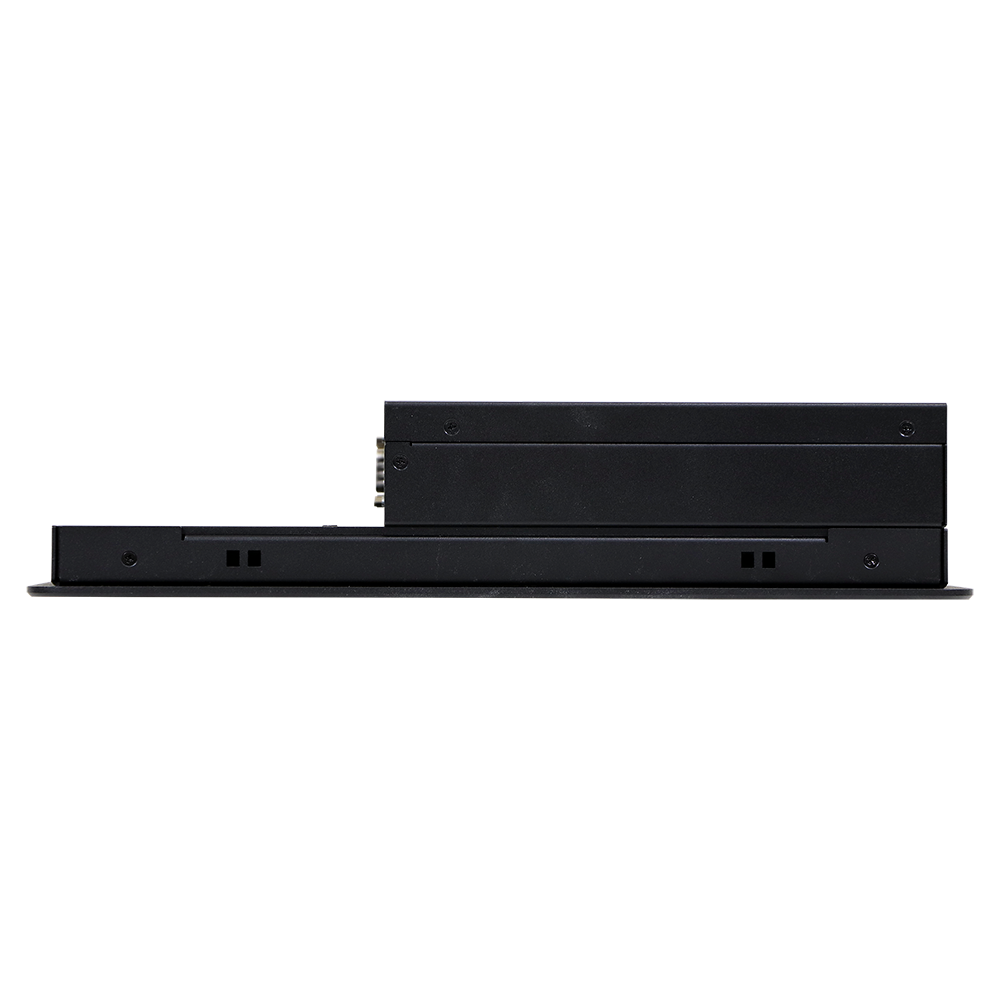

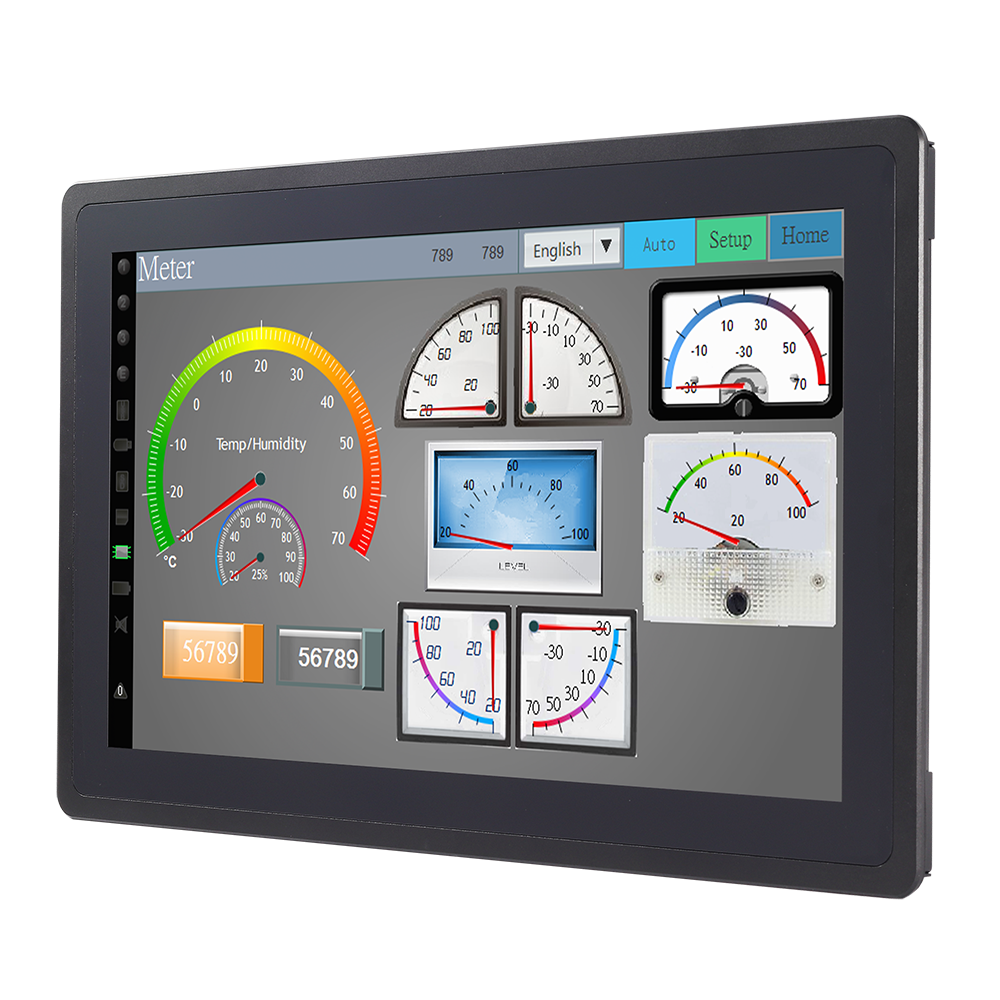

21.5” True Flat Fanless Aluminum IP65 Protection Touch Panel PC with Intel ® Core® i5-7200U/i3-7100U Processor

  • Quote

  • Datasheet

特点

list_dot_01.png21.5”Full HD LCD Panel with 5 Wired Resistive Touch Display
list_dot_01.pngEmbedded Intel® Core® i5-7200U 3.1 GHz Processor
list_dot_01.pngSystem Memory up to 32 GB DDR4 2133 SDRAM
list_dot_01.pngTrue Flat Aluminum Front Cover IP65 Protection
list_dot_01.pngSupport miniPCIe with SIM for 3G/LTE and 1 M.2 A/E Key for Wifi/BT
list_dot_01.pngPanel and VESA Mounting

应用

list_dot_01.pngHuman Machine Interface (HMI)
list_dot_01.pngFactory / Manufacturing Automation
list_dot_01.pngATM / Self-service / Kiosk Applications
list_dot_01.pngVending Machine / Ticketing Machine
Model PPC-J217RW-1A1 PPC-J217RW-2A1
Processor System CPU Intel® Core® i5-7200U
Intel® Core® i3-7100U
Frequency Dual-Core up to 3.1GHz Dual-Core up to 2.4GHz
L2 Cache
3 MB
System Chipset
N/A
BIOS UEFI
Memory Technology DDR4 2133 MHz SDRAM
Max. Capacity 32 GB
Socket/ (On Board) 2, (260-pin SO-DIMM)
Display Panel Size 21.5” Panel
Aspect Ratio
16:9
Resolution
1920 x 1028 (FHD)
Viewing Angle 85 x 85 (H) x 80 x 80 (V)
Brightness 250 (cd/m2)
Contrast Ratio 1000:1
VGA / HDMI / DP / DVI
1, DP 1.2, Up to 3840 x 2160 @ 60Hz/ 1, HDMI 2.0a, up to 4096 x 2160 @ 60Hz
Multi Display
LCD + DP or LCD + HDMI
Touchscreen Touchscreen Type 5-Wire Resistive
Surface Hardness

3 Mohs

Durability 36 millions times
Transparency
80% (±3%)

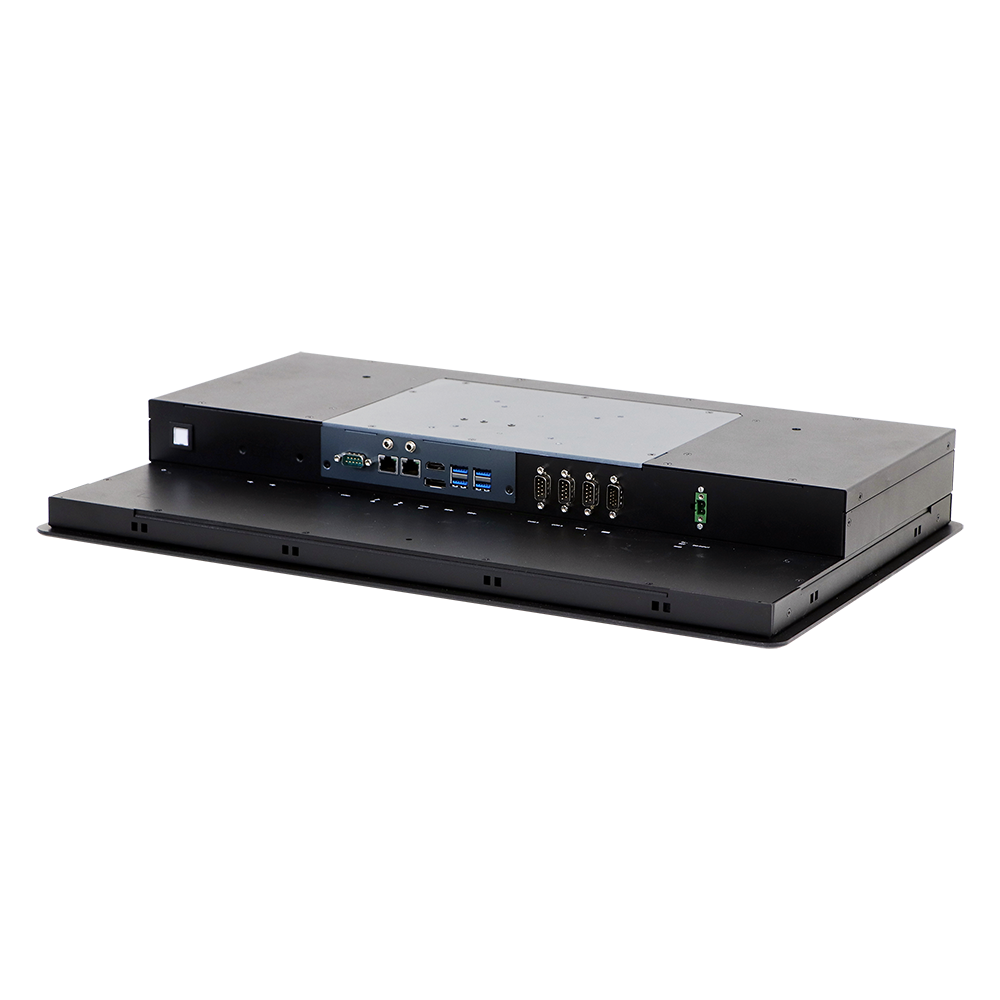

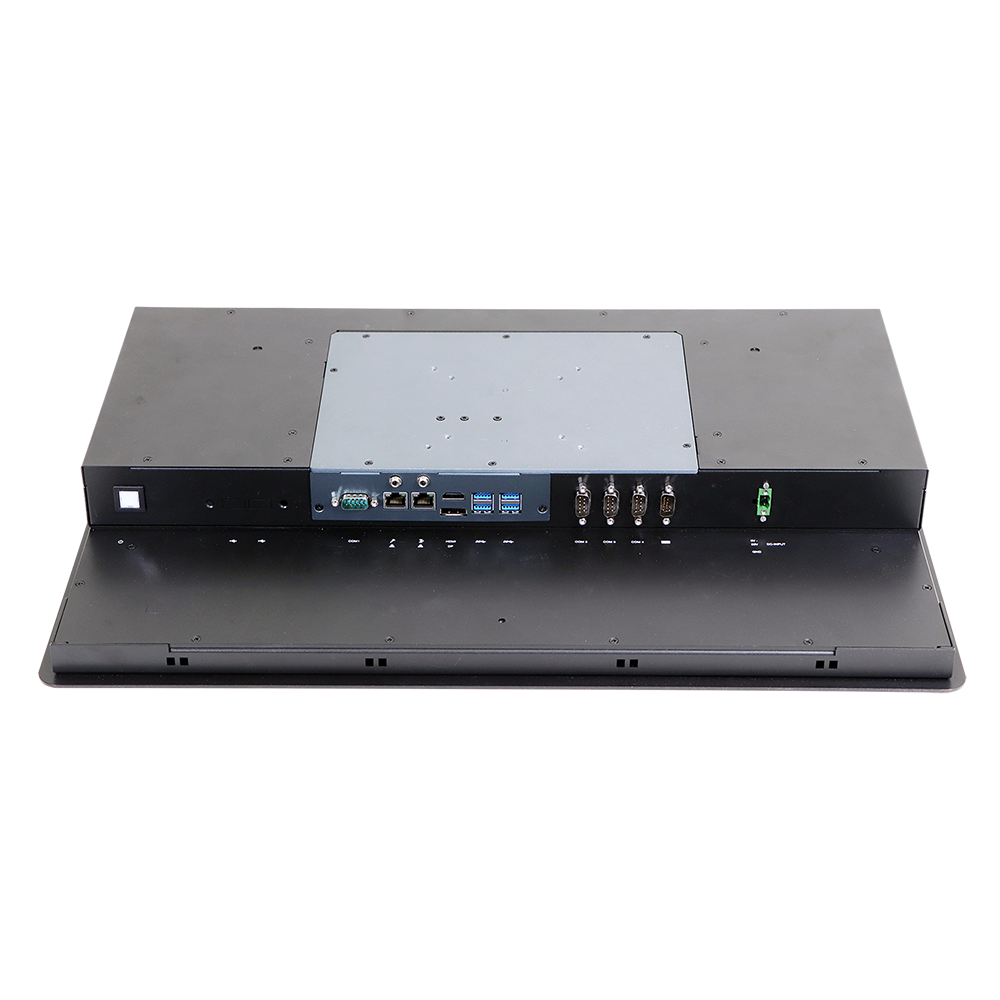

I/O Interface
USB
4, USB 3.0
Serial
4, COM (3 RS-232, 1 RS-232/422/485)
Digital I/O
1, 8-pin Digital I/O (DB-9 connector)
Ethernet
Dual GbE, 10/100/1000 Mbps (Intel i219V, i211AT)
Others
-
Expansion
miniPCIe/ M.2 Slot
1, miniPCIe with SIM, 1, M.2 2230 A/E Key (WiFi & BT)
PCI/ PCIe Slot
-
Audio Connector Line out, Mic In, Realtek High Definition Audio (HD)
Storage HDD/SSD 1, Internal 2.5” HDD/SSD
mSATA/ M.2 / eMMC Supports 1 M.2 B/M Key 2280
Power
Power On Model AT/ATX
Power Supply Voltage Supports 9-36 V DC input
Connector Type 2-pin Terminal Block
Power Consumption(Typical/Max.)
Typical:17.5W@12V(1.46A), MAX:61.5W@12V(5.125A)
Battery CR2032;3.3V

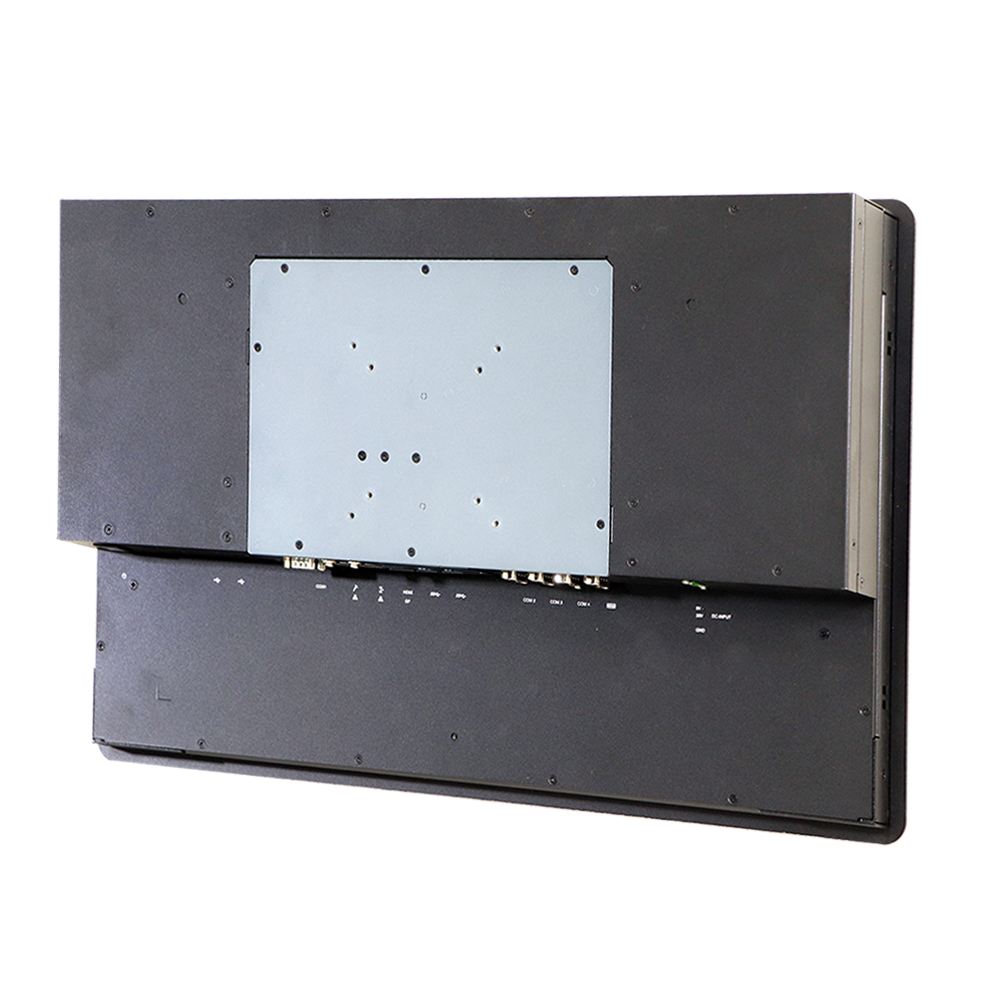

Mounting VESA Mount 75mmx 75mm; 100mm x 100mm
Panel Mount
Cut out 544.4 x 336.3 mm mm, Thickness range under 7mm
Others
-
Environment
Operating Temperature -20~60° C (-4~140° F) w/ Extended Operation Temp. RAM & 2.5” SSD
Storage Temperature -40~85° C (-40~185° F)
Humidity 5~95% @ 40° C, non-condensing
Vibration
1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes
Shock
20 G, IEC 60068-2-27, half sine, 11 ms duration
General Certification TBD
Thermal Dissipation Fanless
Material, Surface Finish Aluminum Front Cover
Ingress Protection Front Cover IP65 Protection
Dimensions (W x H x D) 561.8 x 352.76 x 73.55mm (22.12"x13.89"x2.90")
Net Weight 8.1kg(17.85Ib
Operating System Windows 10 IoT 64Bit, Linux kernal 4.0.x or above


Packing List
Description
1 x PPC-J217RW
1 x Power Adapter
1 x Power Cord
12 x Panel Mounting Screws

Ordering Information
Part No.
Description
PPC-J217RW-1A1
21.5” Fanless 5-wire Resistive Touch Panel PC with Intel® Core® i5-7200U, 2 DDR4, 2 GbE, 4 USB 3.0, 3 RS-232, 1 RS-232/422/485, 8bits GPIO, line out, mic in,1 HDMI, 1DP, DC 9~36V, Phoenix Connector
PPC-J217RW-2A1
21.5” Fanless 5-wire Resistive Touch Panel PC with Intel® Core® i3-7100U, 2 DDR4, 2 GbE, 4 USB 3.0, 3 RS-232, 1 RS-232/422/485, 8bits GPIO, line out, mic in,1 HDMI, 1DP, DC 9~36V, Phoenix Connector

Optional Items
Part No.
Description
AWD-WF001
wifi 802.11 b/g/n (1T1R) + 1 antenna , Half size
AWD-WF003
wifi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 antenna(dual band), Half size
AWD-WF004
wifi 802.11 b/g/n/ BT4.0 (1T1R) + 2 antenna(dual band), M.2 2230 type
AWD-WF005
wifi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 antenna(dual band), M.22230type
AWD-3G002
3G UC20-G (HSPA+) + 1 antenna, Full size with SIM socket
AWD-4G001
4G(LTE) EC20-E+ 2 antenna, Full size with SIM socket
AWD-4G002
4G(LTE) EC25-J+ 2 antenna, Full size with SIM socket
