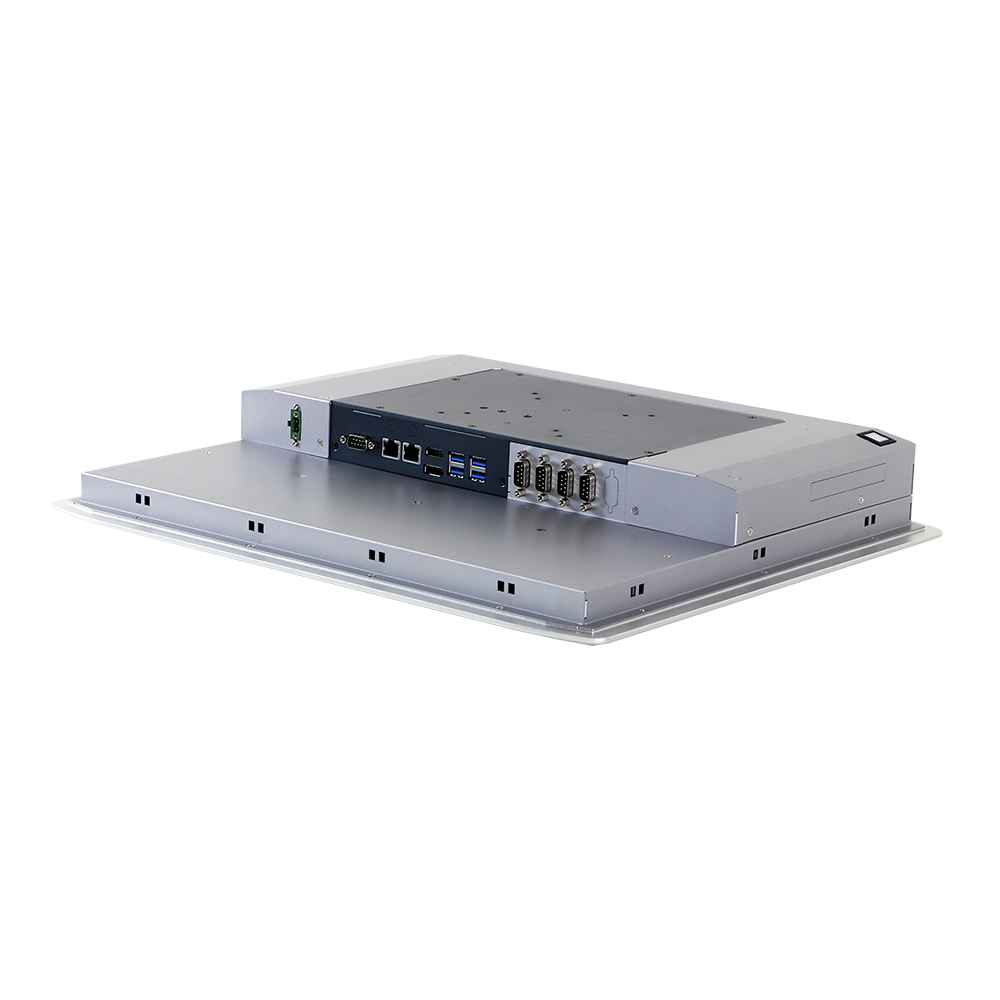

PPC-N197
19” Fanless Aluminum IP66 Protection Touch Panel PC with Intel ® Core® i5-7200U/i3-7100U Processor
  • Quote

  • Datasheet

  • Driver

特点

list_dot_01.pngFront Bezel IP66 Protection
list_dot_01.png7H Hardness Anti-scratch PCAP Touch
list_dot_01.pngAesthetic Silver-white Chamfered Edges
list_dot_01.pngSupports Panel and VESA Mount

应用
list_dot_01.pngHuman Machine Interface (HMI)
list_dot_01.pngFactory / Manufacturing Automation
list_dot_01.pngATM / Self-service / Kiosk
list_dot_01.pngVending Machine / Ticketing Machine
Model PPC-N197P-1A1 PPC-N197P-2A1 PPC-N197R-1A1 PPC-N197R-2A1
Processor System CPU Intel® Core® i5-7200U Intel® Core® i3-7100U Intel® Core® i5-7200U Intel® Core® i3-7100U
Frequency Dual-core up to 3.1GHz Dual-core up to 2.4GHz Dual-core up to 3.1GHz Dual-core up to 2.4GHz
System Chipset N/A
Cache 3 MB
BIOS UEFI
Memory Technology Dual Channel DDR4 2133 MHz SDRAM
Max. Capacity 32 GB
Type 2x 260-pin SO-DIMM
Panel Panel Size 19"
Panel Type LCD Panel
Aspect Ratio 4:3
Resolution SXGA, 1280 x 1024
Viewing Angle 170 (H) x 160 (V)
Brightness 350 cd/m2
Contrast Ratio 1000:1
Response Time 12 msec
Touchscreen Touchscreen Type Projected Capacitive 5-wire Resistive
Surface Hardness 7 Mohs 3 Mohs
Durability N/A 36 Millions Times
Transparency 90% (±3%) 80% (±3%)
Display HDMI 1x HDMI, up to 4096 x 2160 @ 60 Hz
DP 1x DP, up to 4096 x 2160 @ 60 Hz
VGA N/A
DVI N/A

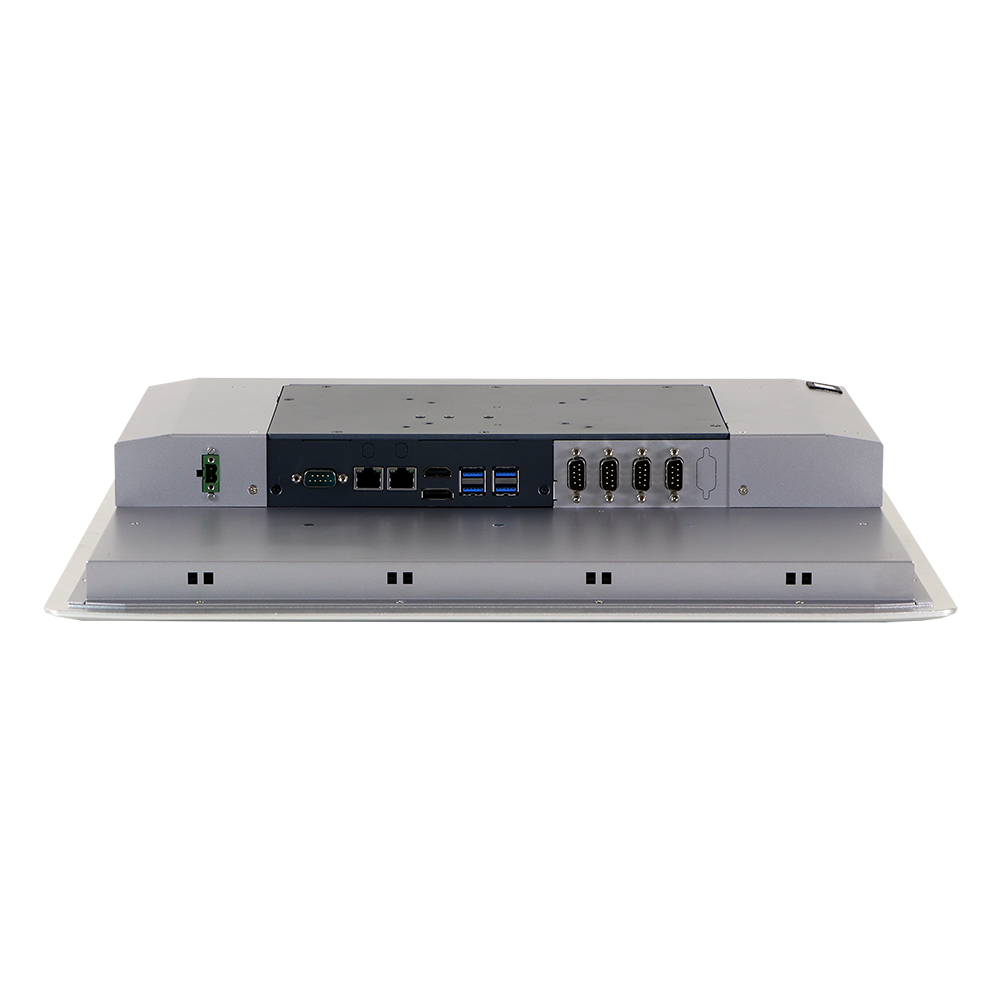

I/O Interface USB 4x USB 3.0
Serial Port 3x RS-232 and 1x RS-232/422/485
Ethernet 2x GbE (Lan1: Intel® i219V, Lan2: Intel® i211AT)
Audio  Line Out, Mic In (Realtek® Audio Codec)
GPIO / DIO 8-pin Digital I/O (DB-9 Connector)
Antenna Hole N/A (Optional)
Others N/A
Storage 2.5" HDD / SSD 1x Internal 2.5” HDD/SSD
M.2 1x M.2 M Key 2280 (PCIe x4, SATA III)
mSATA N/A
RAID RAID 0/1 (Optional)
Expansion Mini PCIe 1x Full Size (PCIe X1 / USB2.0)
M.2 1x M.2 E Key 2230
PCI / PCIe N/A
SIM Holder 1
Power Power Mode AT / ATX
Power Supply Voltage 9-36V DC Input
Connector Type 2-pin Terminal Block
Power Consumption (Typical) 1.37A @ 12V (16.5 W)

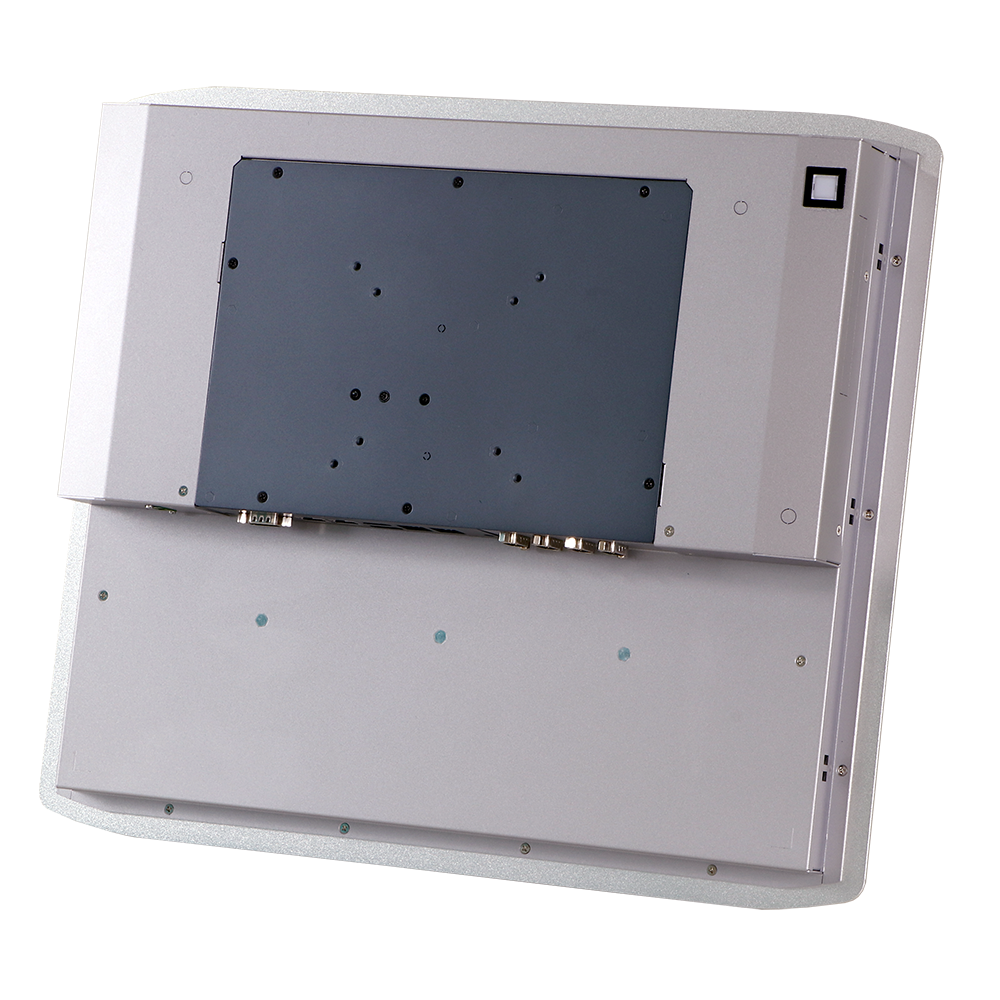

Mounting Type VESA Mount (75 x 75, 100 x 100 mm) / Panel Mount
Environment Operating Temperature -20~60°C (-4~140° F) w/ Extended Operation Temp. RAM & Storage
Storage Temperature -40~85°C (-40~185° F)
Humidity 5~95% @ 40° C, Non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 Hour per Axis
Shock 20 G, IEC 60068-2-27, Half Sine, 11 ms Duration
General Certification CE / FCC Class A
Thermal Dissipation Fanless
Ingress Protection Front IP66
Material Aluminum Front Cover
Dimensions (W x H x D) 456 x 393 x 69 mm (17.95" x 15.47" x 2.72")
Net Weight 5.73kg (11.685 Ib)
Operating System Windows 10 (IoT 64 bit / Professional), Linux Kernel 4.0.x or above

Ordering Information

Part No. Description
PPC-N197P-1A1 19" 4:3 (1280 x 1024), 350 nits, Aluminum IP66 Front Panel, Fanless Panel PC with Intel® Core™ i5-7200U CPU, Projected Capacitive Touch, 4x USB3.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x DP, 1x HDMI, 8-bit GPIO, RAID 0/1, Line Out, Mic In, DC 9~36 V, Phoenix Connector
PPC-N197P-2A1 19" 4:3 (1280 x 1024), 350 nits, Aluminum IP66 Front Panel, Fanless Panel PC with Intel® Core™ i3-7100U CPU, Projected Capacitive Touch, 4x USB3.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x DP, 1x HDMI, 8-bit GPIO, RAID 0/1, Line Out, Mic In, DC 9~36 V, Phoenix Connector
PPC-N197R-1A1 19" 4:3 (1280 x 1024), 350 nits, Aluminum IP66 Front Panel, Fanless Panel PC with Intel® Core™ i5-7200U CPU, 5-wire Resistive Touch, 4x USB3.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x DP, 1x HDMI, 8-bit GPIO, RAID 0/1, Line Out, Mic In, DC 9~36 V, Phoenix Connector
PPC-N197R-2A1 19" 4:3 (1280 x 1024), 350 nits, Aluminum IP66 Front Panel, Fanless Panel PC with Intel® Core™ i3-7100U CPU, 5-wire Resistive Touch, 4x USB3.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x DP, 1x HDMI, 8-bit GPIO, RAID 0/1, Line Out, Mic In, DC 9~36 V, Phoenix Connector

Packing List

Description
1 x PPC-N197
1 x Power Adapter
16 x Panel Mounting Screws

Optional Items

Part No. Description
AWD-WF001 Wi-Fi 802.11 b/g/n (1T1R) + 1 Antenna, Half Size
AWD-WF003 Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antennas (Dual Band), Half Size
AWD-WF004 Wi-Fi 802.11 b/g/n + BT4.0 (1T1R) + 2 Antennas (Single Band), M.2 2230 Type
AWD-WF005 Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antennas (Dual Band), M.2 2230 Type
AWD-4G003 4G(LTE) EG25-G + 2 Antennas, Full Size (for Global)
AWD-4G004 4G(LTE) EC25EFA + 2 Antennas, Full Size(for Europe/Taiwan/China/Hong Kong)
ACS-110-STD VESA Stand (75x75, 100x100 mm), Supporting up to 15 kg Panel PC / Monitor
