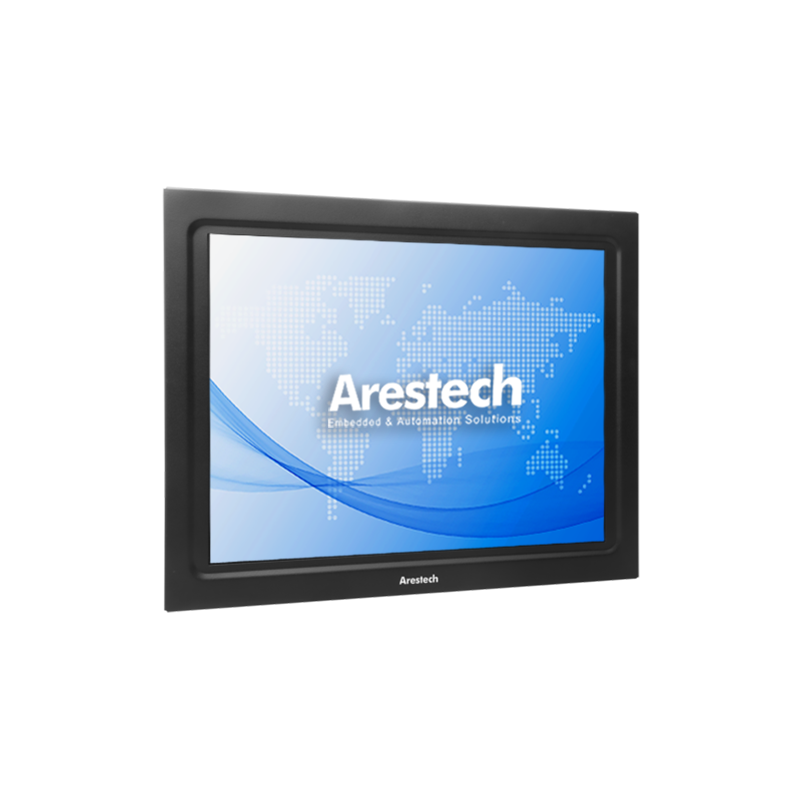

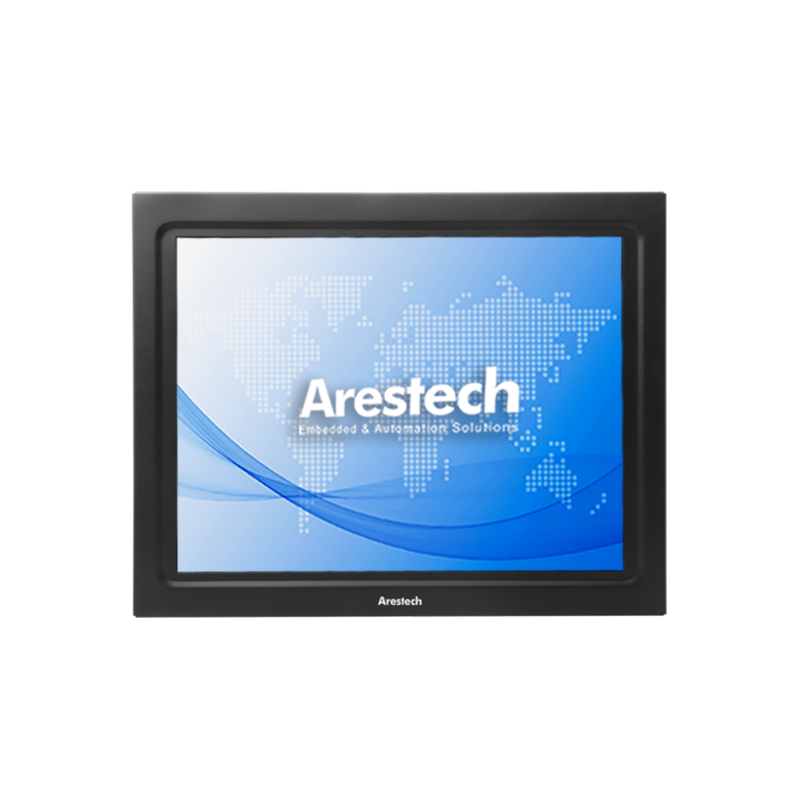

15” TFT XGA LED Panel with Projected Capacitive Touch Display
Embedded Intel® Celeron® J1900 2.0 GHz Processor
System Memory up to 8 GB DDR3L 1333 SDRAM
Supports Two-finger Touch Control while Wearing Gloves
Internal SATA 2.5” HDD and mSATA Socket
Panel and VESA Mounting
Human Machine Interface (HMI)Factory / Manufacturing AutomationATM / Self-service / Kiosk ApplicationsVending Machine / Ticketing Machine | Model | PPC-152P | PPC-152R | |||
| Processor System | CPU | Intel® Celeron® Processor J1900 | |||
| Frequency | Quad-Core up to 2.0 GHz | ||||
| System Chipset | N/A | ||||
| Cache | 2 MB | ||||
| BIOS | UEFI | ||||
| Memory | Technology | DDR3L 1333 MHz SDRAM | |||
| Max. Capacity | 8 GB | ||||
| Type | 1x 204-pin SO-DIMM | ||||
| Panel | Panel Size | 15" | |||
| Panel Type | LCD Panel | ||||
| Aspect Ratio | 4:3 | ||||
| Resolution | XGA, 1024 x 768 | ||||
| Viewing Angle | 80 x 80 (H) x 80 x 80 (V) | ||||
| Brightness | 300 cd/m2 | ||||
| Contrast Ratio | 600:1 | ||||
| Response Time | 8 msec | ||||
| Touchscreen | Touchscreen Type | Projected Capacitive Touch | 5-wire Resistive Touch | ||
| Surface Hardness | 7 Mohs | 3 Mohs | |||
| Durability | N/A | 10 Millions Times | |||
| Transparency | 90% (±3%) | 80% (±3%) | |||
| Display | HDMI | 1x HDMI 1.4a, up to 1920 x 1200 | |||
| DP | N/A | ||||
| VGA | 1x VGA, up to 1920 x 1200 | ||||
| DVI | N/A | ||||

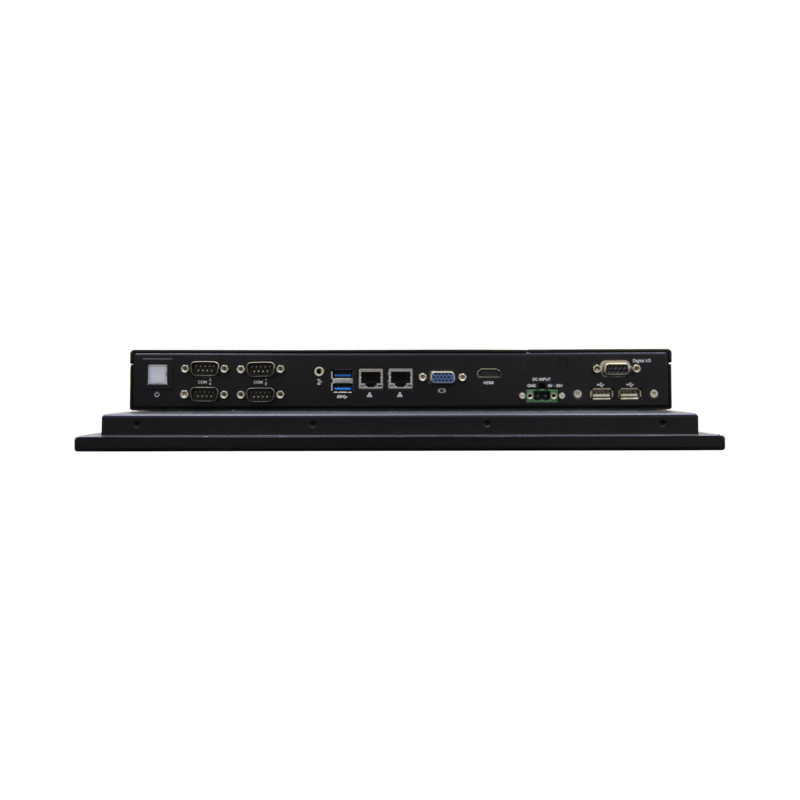

| I/O Interface | USB | 2x USB 3.0 and 2x USB 2.0 | |||
| Serial Port | 3x RS 232 and 1x RS-232/422/485 | ||||
| Ethernet | 2x GbE, 10/100/1000 Mbps (Realtek RTL8111G-CG) | ||||
| Audio | Line out | ||||
| GPIO / DIO | 8-bit Digital I/O (DB-9 connector) | ||||
| Storage | 2.5" HDD / SSD | 1x Internal 2.5” HDD/SSD | |||
| M.2 | N/A | ||||
| mSATA | Supports either mSATA or full-size Mini PCIe, selected by jumper setting | ||||
| RAID | N/A | ||||
| Expansion | Mini PCIe | Supports either mSATA or full-size Mini PCIe, selected by jumper setting | |||
| M.2 | N/A | ||||
| PCI / PCIe | N/A | ||||
| Power | Power Supply Voltage | 9-36V DC Input | |||
| Connector Type | 2 Pins Terminal Block, Phoenix Connector | ||||
| Power Consumption (Typical) | 1.53A @ 12V (18.4W) | ||||
| Mounting | Type | VESA / Panel Mount | |||
| Environment | Operating Temperature | -20~60° C (-4~140° F) w/ Extended Operation Temp RAM and 2.5” SSD | |||
| Storage Temperature | -40~85°C (-40~185° F) | ||||
| Humidity | 5~95% @ 40° C, Non-condensing | ||||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | ||||
| General | Certification | CE, FCC Class A, C.C.C. | |||
| Thermal Dissipation | Fanless | ||||
| Ingress Protection | IP54 | ||||
| Dimensions (W x H x D) | 364.6 x 290.6 x 58.7 mm (14.35” x 11.44” x 2.31”) | ||||
| Net Weight | 4.37 kg (9.6 lb) | 4.31 kg (9.5 lb) | |||
| Operating System | Windows 7/8/10 IoT , WES7 E/P, WE8S | ||||
Ordering Information
| Part No. | Description |
| PPC-152P-A1 | 15" 4:3 (1024 x 768), 300 nits, SECC IP54 Front Panel, Fanless Panel PC with Intel® Celeron J1900 CPU, Projected Capacitive Touch, 2x USB3.0, 2x USB2.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x HDMI, 1x VGA, Line Out, DC 9~36 V, Phoenix Connector |
| PPC-152R-A1 | 15" 4:3 (1024 x 768), 300 nits, SECC IP54 Front Panel, Fanless Panel PC with Intel® Celeron J1900 CPU, 5-wire Resistive Touch, 2x USB3.0, 2x USB2.0, 3x RS-232, 1x RS-232/422/485, 2x GbE, 1x HDMI, 1x VGA, Line Out, DC 9~36 V, Phoenix Connector |
Packing List
| Description | |
| 1x PPC-152 |
Optional Items
| Part No. | Description |
| ACS-PS-US | Power Cable 3-pin, 180 cm, USA Type |
| ACS-PS-EU | Power Cable 3-pin, 180 cm, Euro Type |
| ACS-PS-CN | Power Cable 3-pin, 180 cm, China Type |
| ACS-100-STD | VESA Table Stand |
