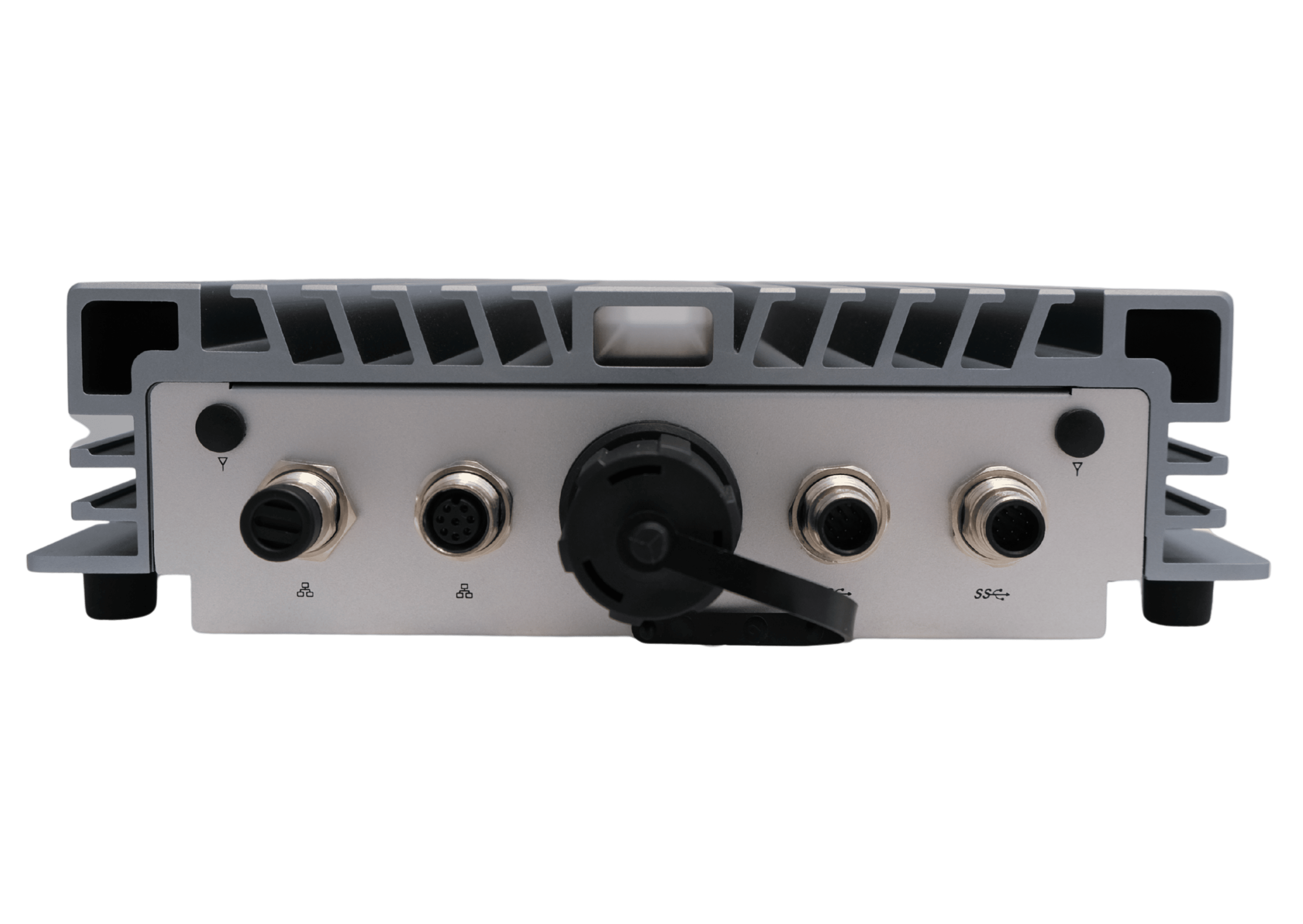

BPC-5012

Model

BPC-5012

Processor System

CPU

Intel® Celeron® J6412 Processor

Frequency

up to 2.60GHz

BIOS

UEFI

Memory

Technology

Dual Channel DDR4 3200MHz

Max. Capacity

Support up to 32GB

Type

1 x 260-pin SO-DIMM

Display

Graphics Engine

Intel® UHD Graphics

Multiple Display

1

HDMI

1 x HDMI 2.0, IP67 Connector

I/O Interface

 USB

2 x USB3.2 (Gen1), M12 Connector

Serial Port

2 x RS232/422/485

2 x RS232

Ethernet

2 x GbE Intel® I211AT, M12 Connector

Antenna Hole

2

Storage

2.5” HDD / SSD

1 x SATA III (6.0Gb/s)

 M.2

 1 x M.2 M-Key 2280 (PCIe x2 and SATA III)

Expansion

Mini PCIe

1 x Full-Size Mini-PCIe (PCIe, USB2.0 and SIM)

SIM Holder

1 x SIM Holder

Power

Power Mode

AT/ATX

Power Supply Voltage

12~36V DC Input

Power Connector Type

1 x DC Power Connector, 1 x 2-pin Terminal Block

Power Adapter

AC/DC, 12V/5A 60W

Mounting

Type

Wall Mount

Environment

Operating Temperature

-20C ~ 60°C

Storage Temperature

-30C ~ 70°C

Humidity

10% ~ 90% (Non-condensing)

Vibration

1.5Grms, 5-500Hz, 0.5Axis

Shock

50Grms, Half-sine 11ms

Certification

CE/FCC Class A

General

Thermal Dissipation

Fanless System

Material

Extruded Aluminum with Heavy Duty Metal

Dimensions (W x D x H)

238 x 245 x 68mm

Net Weight

3.5kg

Operating System

Windows 10 IoT, Windows 11 (IoT/Professional), Linux
