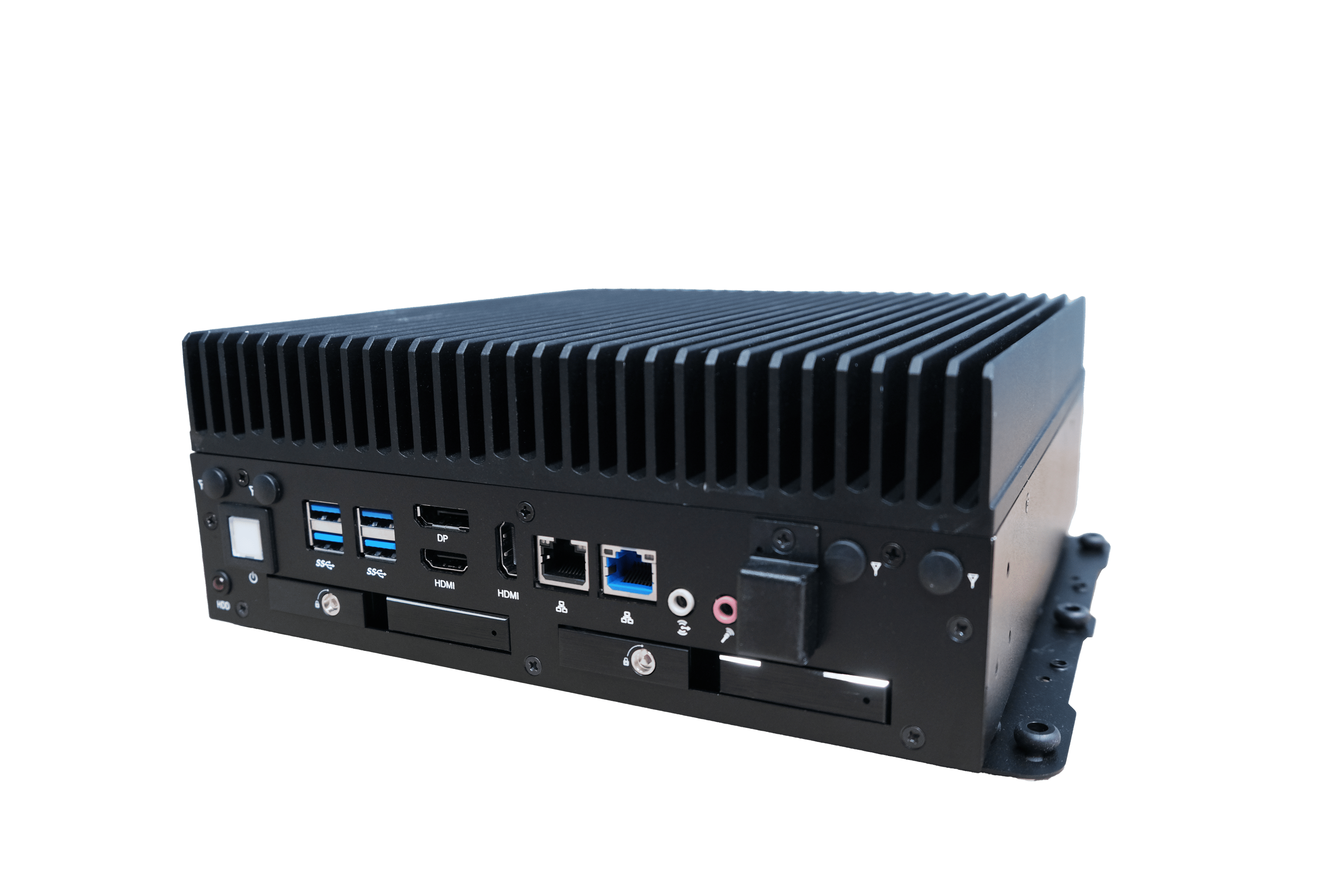

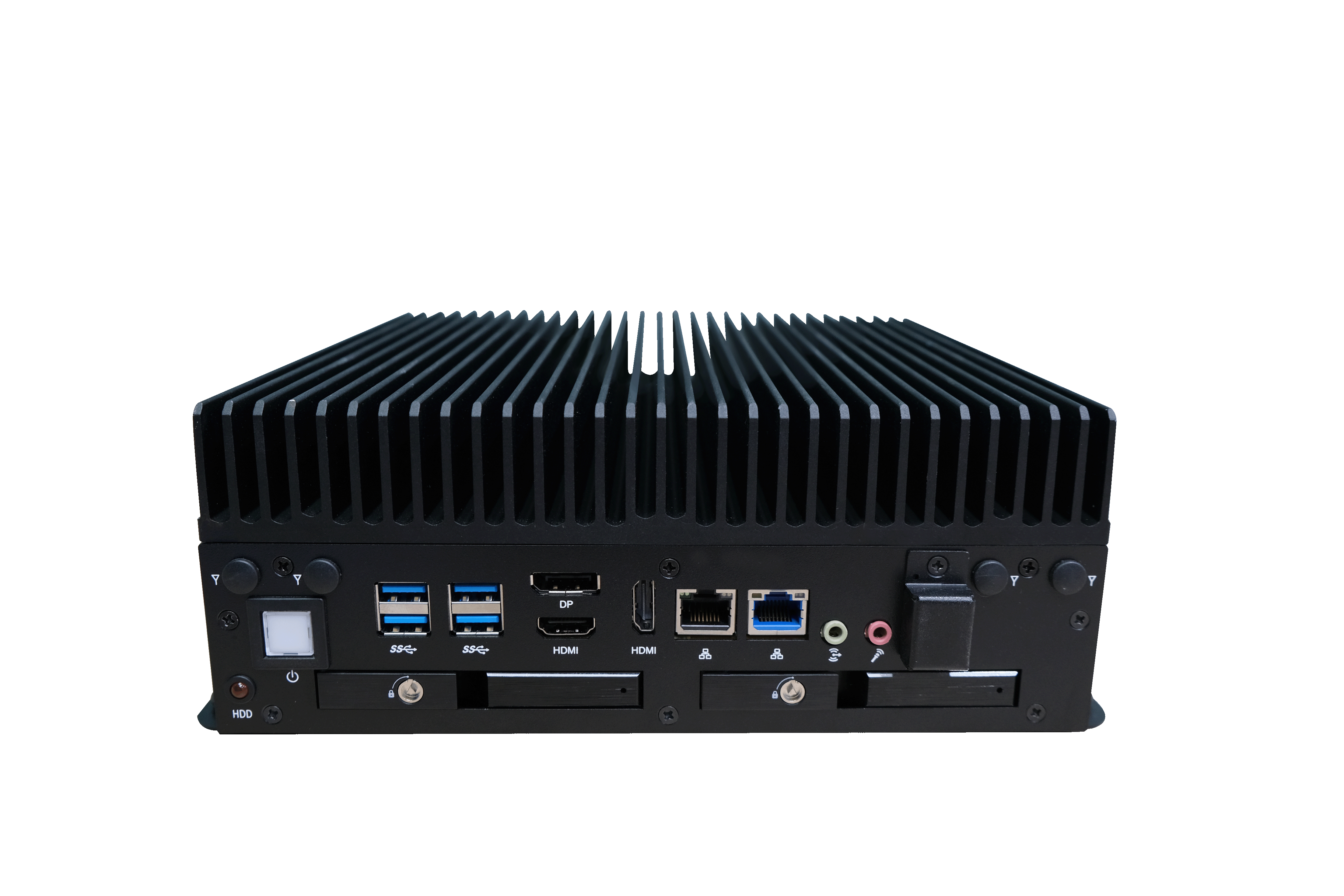

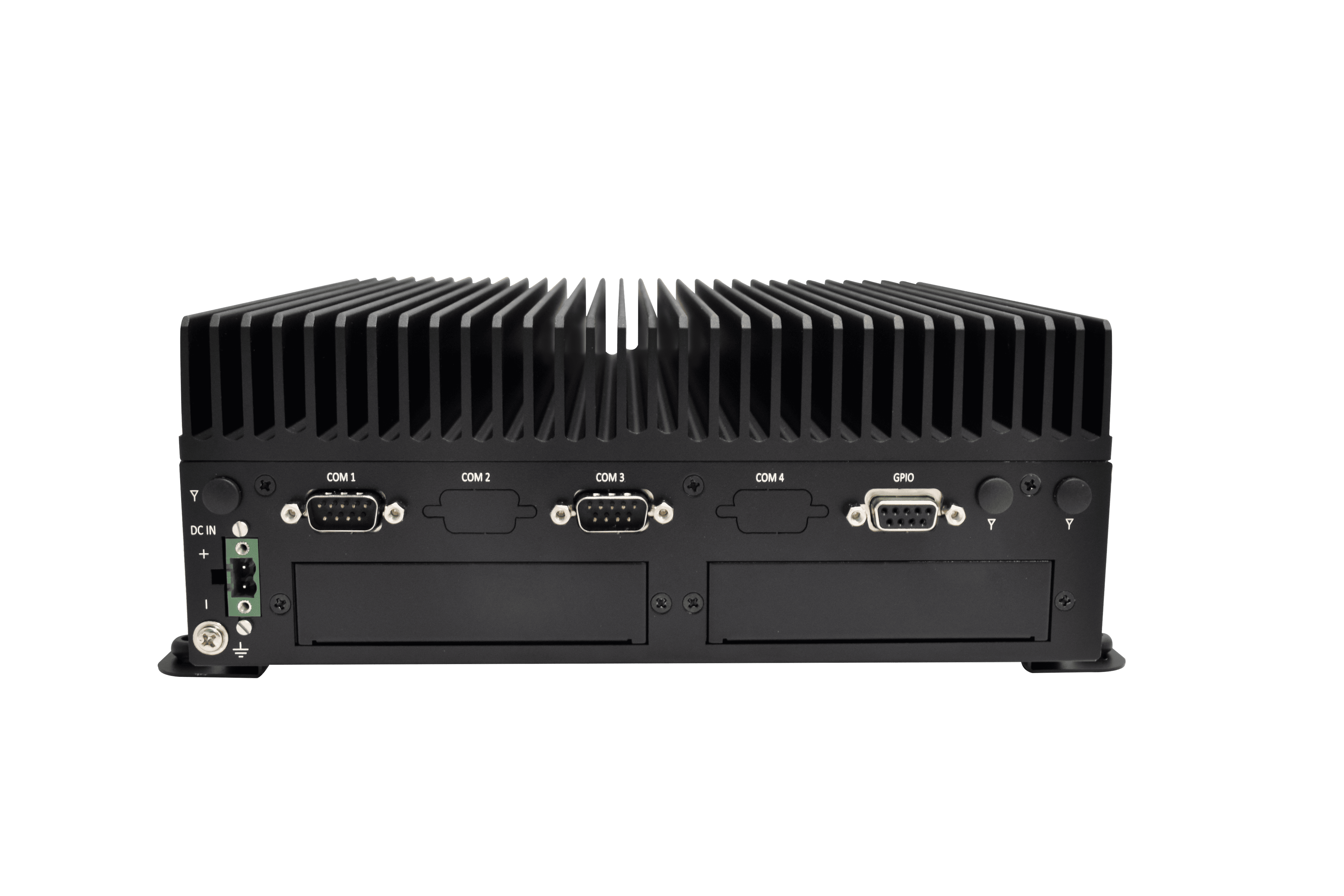

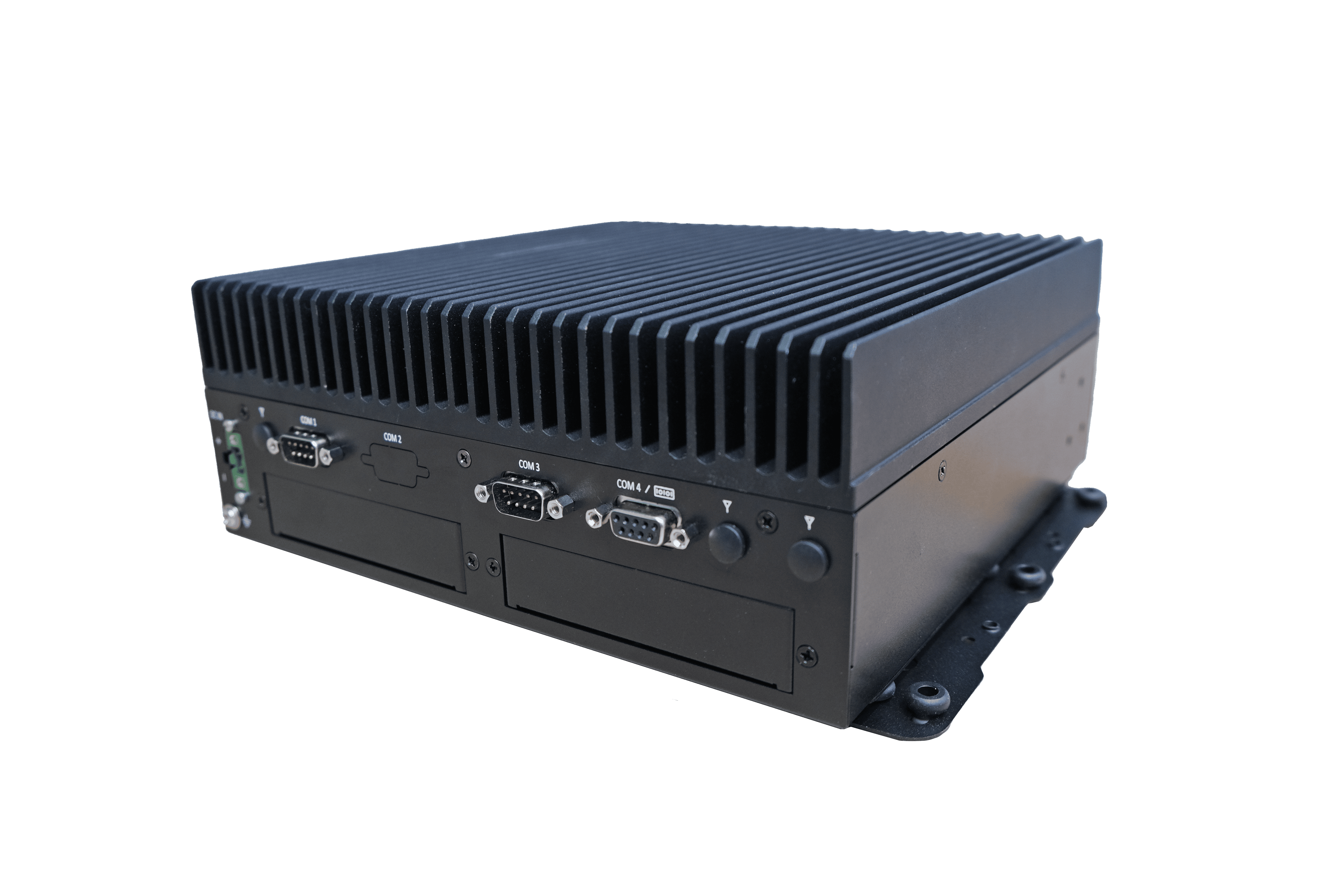

Supports 14th/13th/12th Gen Intel® Core™ LGA 1700 CPU
Dual Channel DDR5 4800/5600MHz, up to 96GB
Multiple Display: 2 x HDMI 2.0b, 1 x DP 1.4a++
1 x 2.5GbE (Intel® I226V), 1 x GbE (Intel® I219LM)
Supports 2 x Removable 2.5” SATA HDD/SSD
Supports 2 x Flexible I/O windows for Scalability
-20°C ~ 60°C Wide Operating Temperature
特点
应用
Edge AI Computing
Factory Automation
Motion Control
Machine Vision
Data Analytics
|
Model |
SB-5512 |
|
|
Processor System |
CPU |
14th/13th/12th Intel® Core™/Pentium®/Celeron® 35W LGA 1700 Processors |
|
System Chipset |
Intel® Q670 |
|
|
BIOS |
AMI 256 Mbit |
|
|
TPM |
Onboard TPM 2.0 |
|
|
Memory |
Technology |
Dual Channel DDR5 4800/5600MHz |
|
Max. Capacity |
96GB |
|
|
Socket Type |
2 x 262-pin SO-DIMM |
|
|
Display |
Graphics Engine |
Intel® UHD Graphics |
|
Multiple Display |
3 |
|
|
HDMI |
2 x HDMI 2.0b, Max resolution up to 4096x2160 |
|
|
DP |
1 x DP, Max solution 4096 x 2160 |
|
|
I/O Interface |
USB |
4 x USB3.2, 4 x USB2.0 |
|
Serial Port |
2 x RS232/422/485 |
|
|
Ethernet |
1 x 2.5GbE(Intel® I226V) 1 xGbE (Intel® I219LM) |
|
|
Audio |
1 x Line-out, 1 x Mic-in |
|
|
GPIO |
4 x Input, 4 x Output (D-SUB 9-pin) |
|
|
Antenna Hole |
7 |
|
|
Storage |
2.5" HDD / SSD |
2 x Removable 2.5" SATA HDD/SSD |
|
M.2 |
1 x M.2 M-Key 2242/2280 (PCIe Gen4 x4 and SATA III) 1 x M.2 M-Key 2242 (PCIe Gen4 x4 and SATA III) |
|
|
RAID |
Intel® VMD RAID 0/1 |
|
|
Expansion |
M.2 |
1 x M.2 E-Key 2230 (PCIe x1, USB 2.0 and CNVi for Wireless) 1 x M.2 B-Key 3042/3052 (PCIe x1, USB 3.2 Gen1, and USB 2.0) |
|
Power |
Power Mode |
AT / ATX |
|
Power Supply Voltage |
12~28VDC Input |
|
|
Power Connector Type |
1 x 2-pin Terminal Block Connector |
|
|
Mounting |
Type |
Wall Mount |
|
Environment |
Operating Temperature |
-20 ~ 60°C |
|
Storage Temperature |
-40 ~ 75°C |
|
|
Humidity |
5% ~ 90% (Non-condensing) |
|
|
Vibration |
1Grms, 5-500 Hz, 1hr/Axis |
|
|
Shock |
20Grms, Half-sine 11ms |
|
|
General |
Certification |
CE/FCC Class A |
|
Thermal Dissipation |
Fanless System |
|
|
Material |
Aluminum & SECC |
|
|
Dimensions (W x D x H) |
248.5 x 228 x 100mm |
|
|
Net Weight |
5.0kg |
|
|
Operating System |
Windows 10 IoT, Windows 11 (IoT/Professional), Linux |
|
Ordering Information
| Part No. | Description |
| SB-5512 |
14th/13th/12th Gen Intel® Core™ LGA1700 CPU socket, Q670 Chipset, 1 x 2.5GbE, 1 x GbE, 2 xHDMI, 1 x DP, 2 x RS-232/422/485, 4 x USB3.2, 1 x GPIO, 2 x Mic-In/Line-Out,2 x Flexible I/O windows, 12~28VDC |
Packing List
Description
1 x SB-5512
Optional Items
Part No.
Description
EA-PS-120W24VTB2x-0111
Adapter AC/DC 24V 5A 120W with TB2 Connector
27-x301010005-CA
Power Cord, 3-pin EU Type, 180 cm
27-x301000003-CA
Power Cord, 3-pin US Type, 180 cm
i7-14700T
14th Gen Intel® Core™ i7-14700T Raptor Lake Refresh_30M Cache, up to 5.00GHz_35W
i5-14500T
14th Gen Intel® Core™ i5-14500T Raptor Lake Refresh_24M Cache, up to 4.80GHz_35W
i3-14100T
14th Gen Intel® Core™ i3-14100T Raptor Lake Refresh_12M Cache, up to 4.40GHz_35W
i7-13700TE
13th Gen Intel® Core™ i7-13700TE Embedded_Raptor Lake_30M Cache, up to 4.80GHz_35W
i5-13500TE
13th Gen Intel® Core™ i5-13500TE Embedded_Raptor Lake_24M Cache, up to 4.50GHz_35W
i3-13100TE
13th Gen Intel® Core™ i3-13100TE Embedded_Raptor Lake_12M Cache, up to 4.10GHz_35W
i7-12700TE
12th Gen Intel® Core™ i7-12700TE Embedded_Alder Lake_25M Cache, up to 4.60 GHz_35W
i5-12500TE
12th Gen Intel® Core™ i5-12500TE Embedded_Alder Lake_18M Cache, up to 4.30 GHz_35W
i3-12100TE
12th Gen Intel® Core™ i3-12100TE Embedded_Alder Lake_12M Cache, up to 4.00 GHz_35W
AWD-4G005
4G (LTE) EM05-G + 2 Antennas, M.2 (for Global)
AWD-WF009
Wi-Fi 802.11 a/b/g/n/ac/BT5.0 (2T2R) +2 Antennas (Dual Band), M.2 2230 Type
