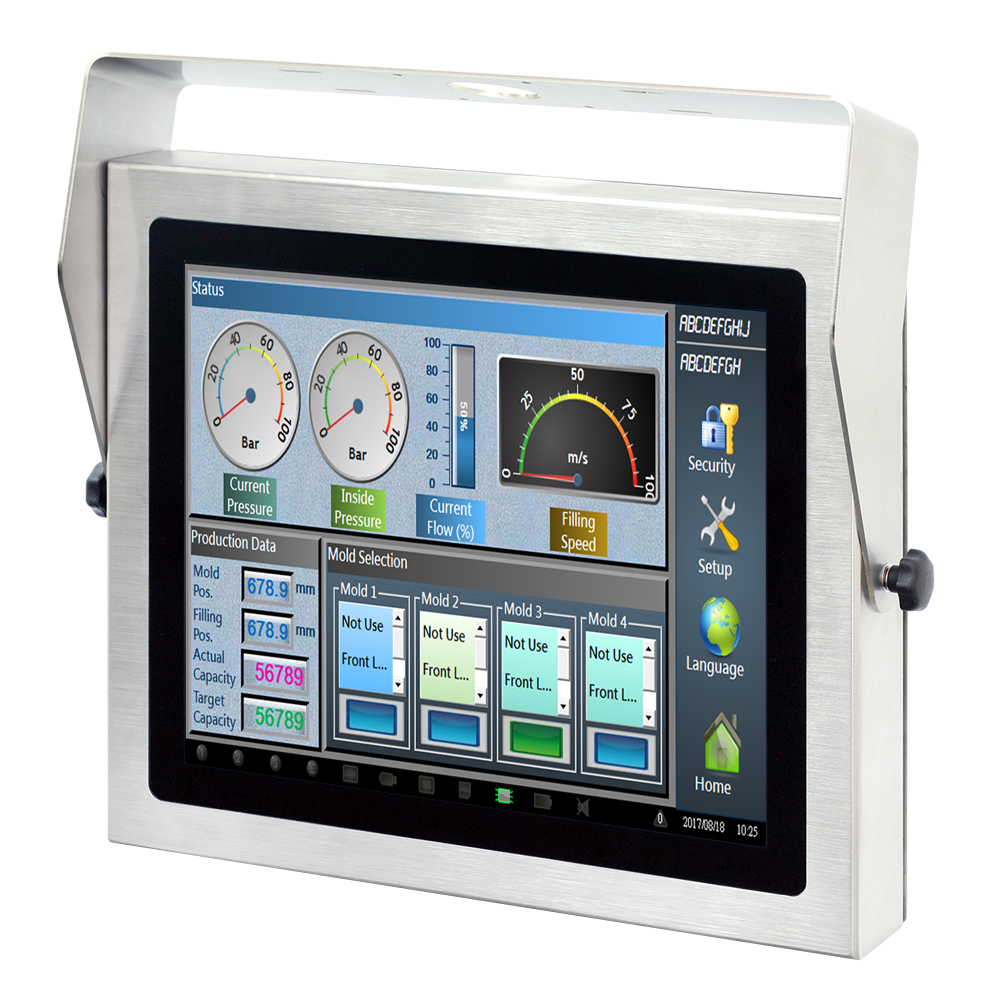

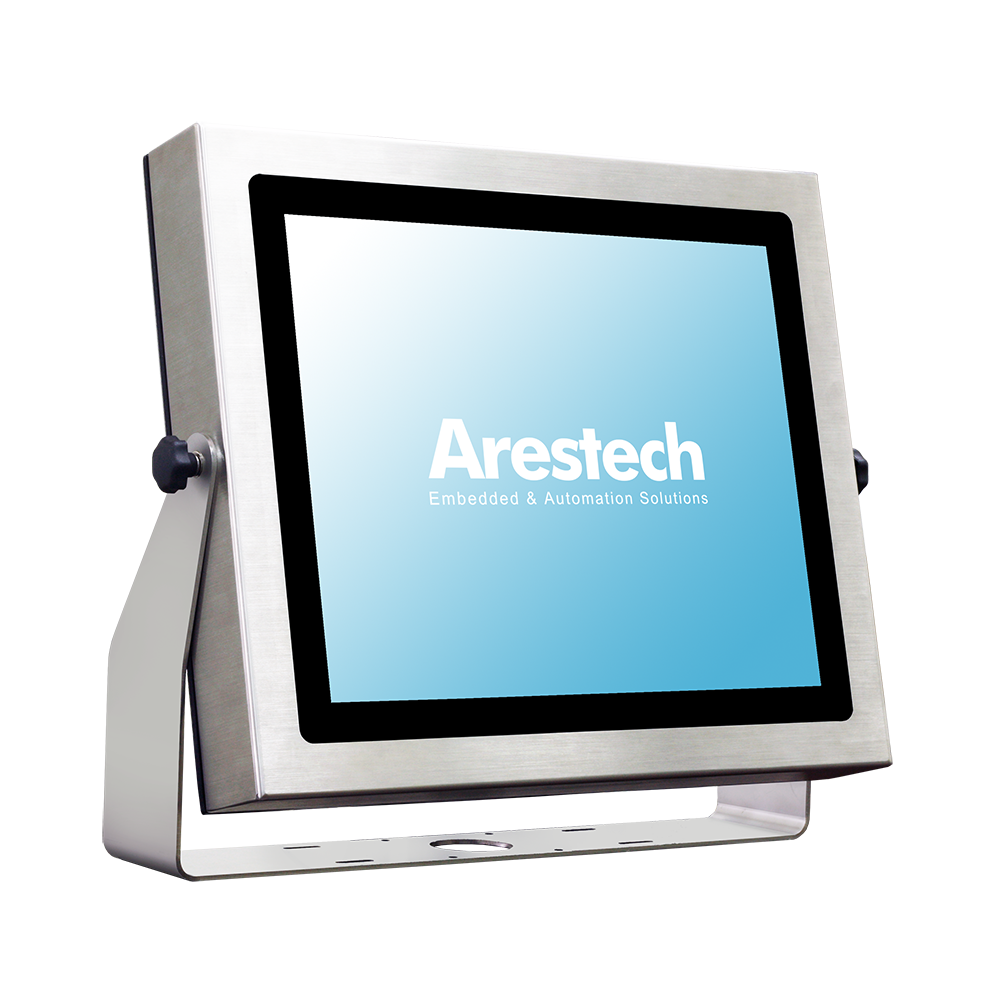

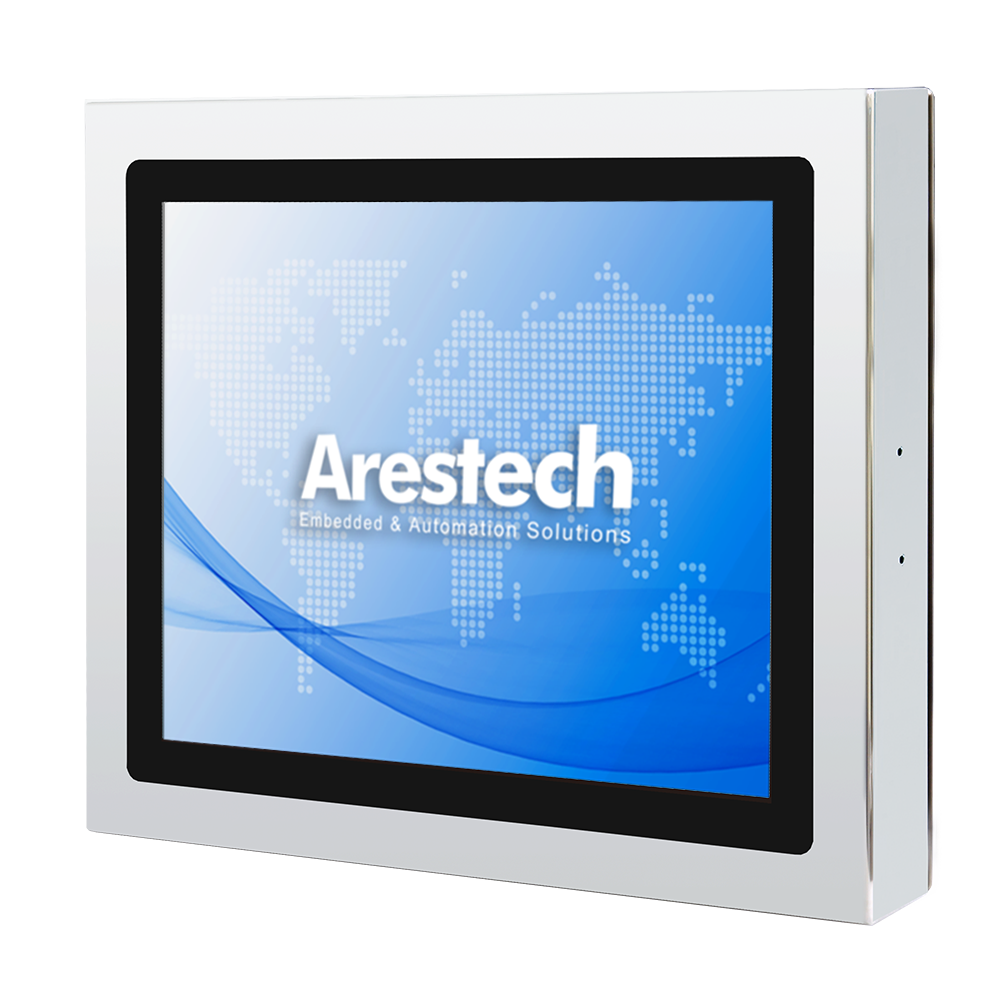

IP66/69K Protected Stainless Steel 316 Flat Panel Design17" LCD, P-CAP or 5-Wire Resistive, Resolution 1280 x 1024 (SXGA)12 ~ 24 V DC power input (M12 Connector)VGA and USB (M12 Connetor), HDMI portVESA and Yoke mounting特点
IP66/69K Protected Stainless Steel 316 Flat Panel Design17" LCD, P-CAP or 5-Wire Resistive, Resolution 1280 x 1024 (SXGA)12 ~ 24 V DC power input (M12 Connector)VGA and USB (M12 Connetor), HDMI portVESA and Yoke mounting应用
Food & Beverage Processing IndustryPharmaceutical and Biopharmaceutical EquipmentEmbedded HMI Display SystemFactory Manufacturing AutomationChemical, Gas & Oil Critical Environment| Model | TPM-3617P-B6A2 | TPM-3617R-B6A1 | ||||
| Display | Panel Size | 17” LCD Panel | ||||
| Resolution | 1280 x 1024 (SXGA) | |||||
| Viewing Angle | 85 x 85 (H) x 80 x 80 (V) | |||||
| Brightness | 350 (cd/m2) | |||||
| Contrast Ratio | 1000:1 | |||||
| Touchscreen | Touchscreen Type | Projected Capacitive | 5-Wire Resistive | |||
| Surface Hardness | 7 Mohs | 3 Mohs | ||||
| Transparency | 90% (±3%) | 80% (±3%) | ||||
| On/Off Button | Yes | N/A | ||||

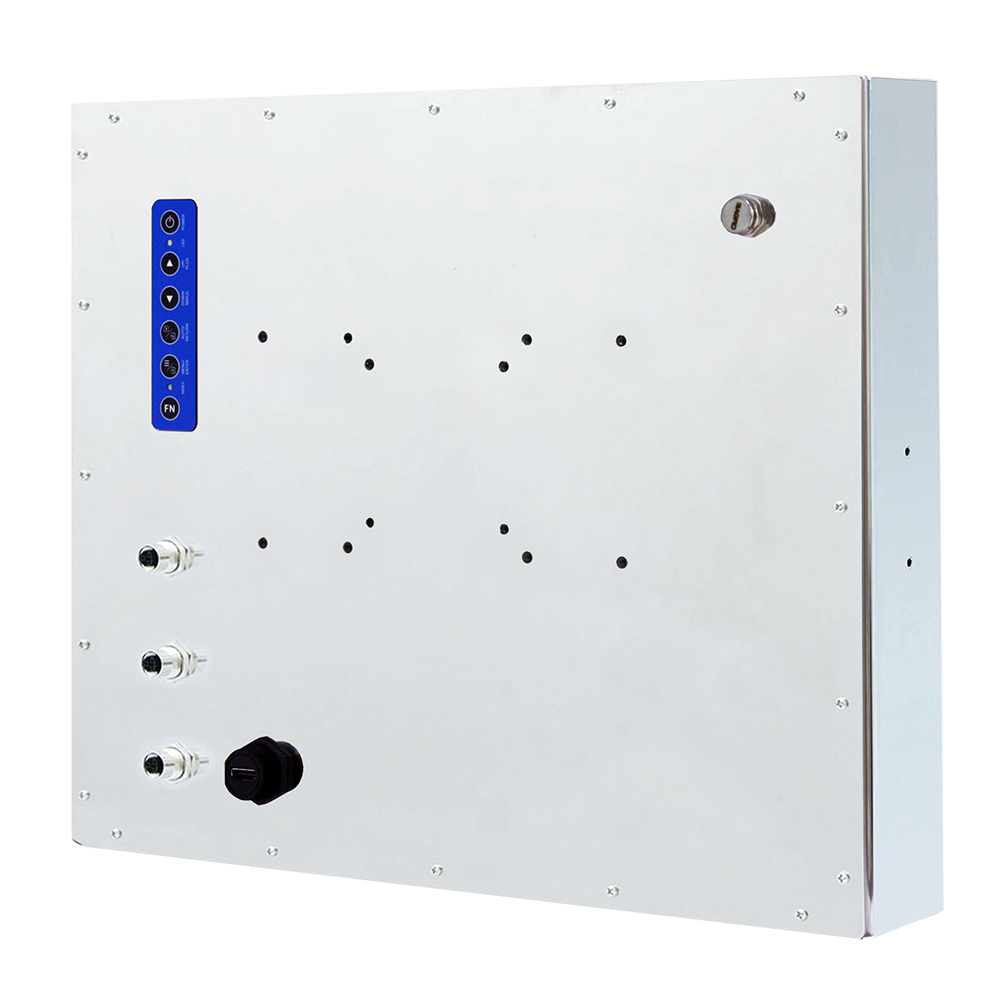

| I/O Interface | Video Interface | 1x VGA (M12 Connector), 1x HDMI (IP67 Waterproof Connector) | ||||
| Touch Interface | 1x USB (M12 Connector) | |||||
| Speaker Out | N/A | |||||
| OSD Control | Function Key | 1 RS-232, M12 Connector Remote OSD control (Option) 5 Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off | 6 Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off, Funtion Key | |||
| Power | Power Connector | M12 connector | ||||
| Power Input | 12-24 V DC power input | |||||
| Power Consumption | 22 W | |||||
| Environment | Operating Temperature | -20~60° C (-4~140° F) | ||||
| Storage Temperature | -20~60° C (-4~140° F) | |||||
| Humidity | 5~95% @ 40° C, Non-condensing | |||||
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |||||
| General | Ingress Protection | Full System IP66 Protection | ||||
| Dimensions (W x H x D) | 439 X 373 X 66.9 (17.28” x 14.69” x 2.63”) | |||||
| Weight | 7.71 kg (17.0 lb) | |||||
| Operating System | Windows 7/8.1/10, WES7, WE8S, Linux Fedora, Ubuntu | |||||
| Certification | TBD | |||||
| Mounting | Mounting | VESA Mount (75mmx 75mm; 100mm x 100mm; 200mm x 100mm) / Yoke Mount | ||||
Ordering Information
| Part No. | Description |
| TPM-3617P-B6A2 | 17" 4:3 (1280 x 1024), 350 nits, Stainless Steel 316 Full IP66/69K Protection, Projected Capacitive Touch, USB Interface, 1x HDMI IP67 Connector, 1x VGA, DC 12~24V, M12 connector |
| TPM-3617R-B6A1 | 17" 4:3 (1280 x 1024), 350 nits, Stainless Steel 316 Full IP66/69K Protection, 5-wire Resistive Touch, USB Interface, 1x HDMI IP67 Connector, 1x VGA, DC 12~24V, M12 connector |
Packing List
| Description | |
| 1 x TPM-3617 | |
Optional Items
| Part No. | Description |
| APW-60M12V-01 | 12V, 60W, 5A, 5-pin M12 Connector (US) |
| APW-60M12V-02 | 12V, 60W, 5A, 5-pin M12 Connector (EU) |
| AKT-TOU2M12 | M12 Connector to Touch Cable, 2m |
| AKT-VGA2M12-M | M12 Connector to DB15 Male Cable, 2m |
| AKT-HDMI2IP67 | IP67 Connector to HDMI Cable, 2m |
