MEVA-2010

Product Comparison

MEVA Series

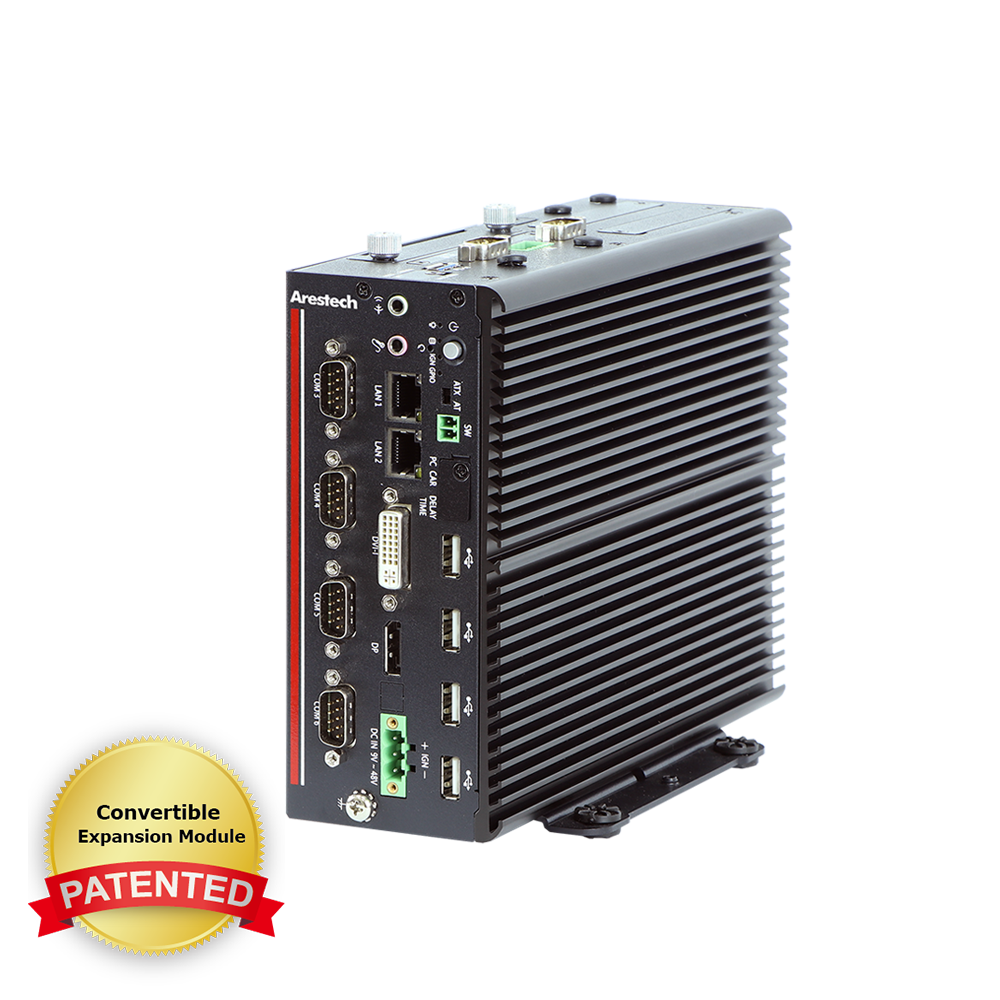

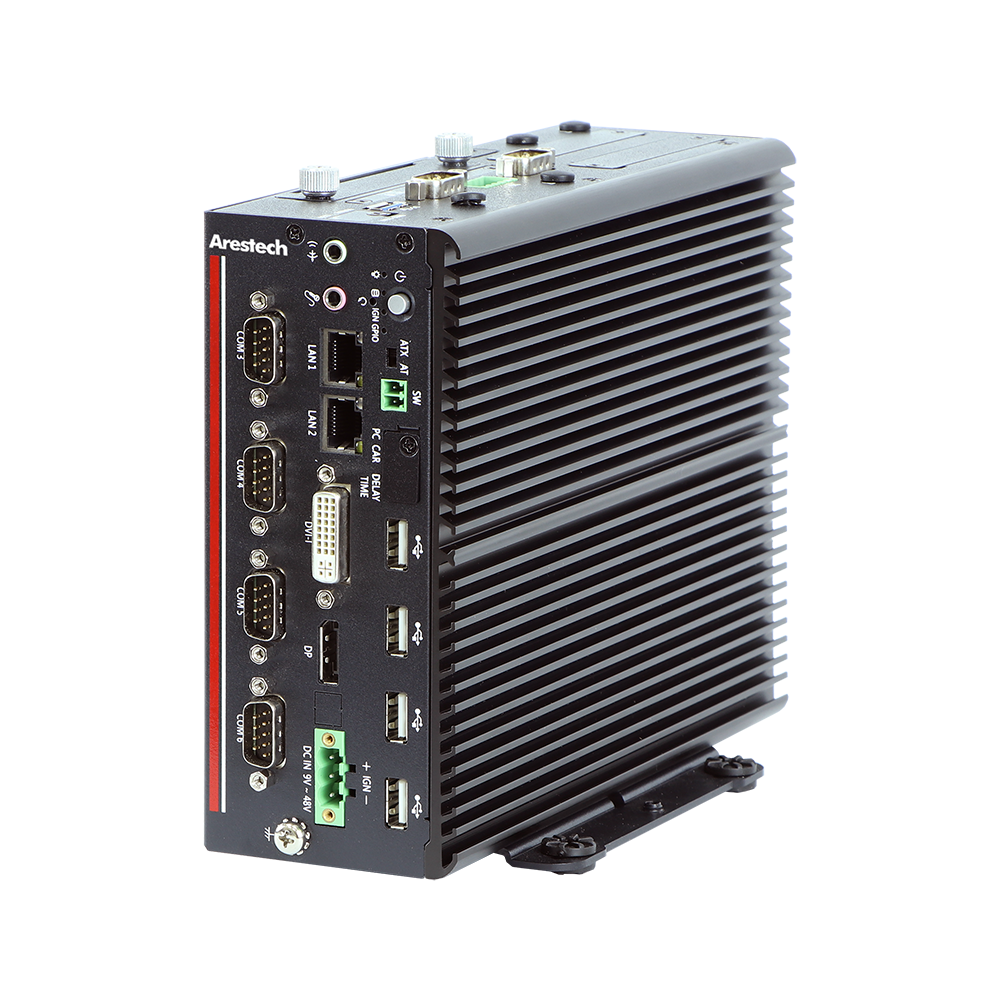

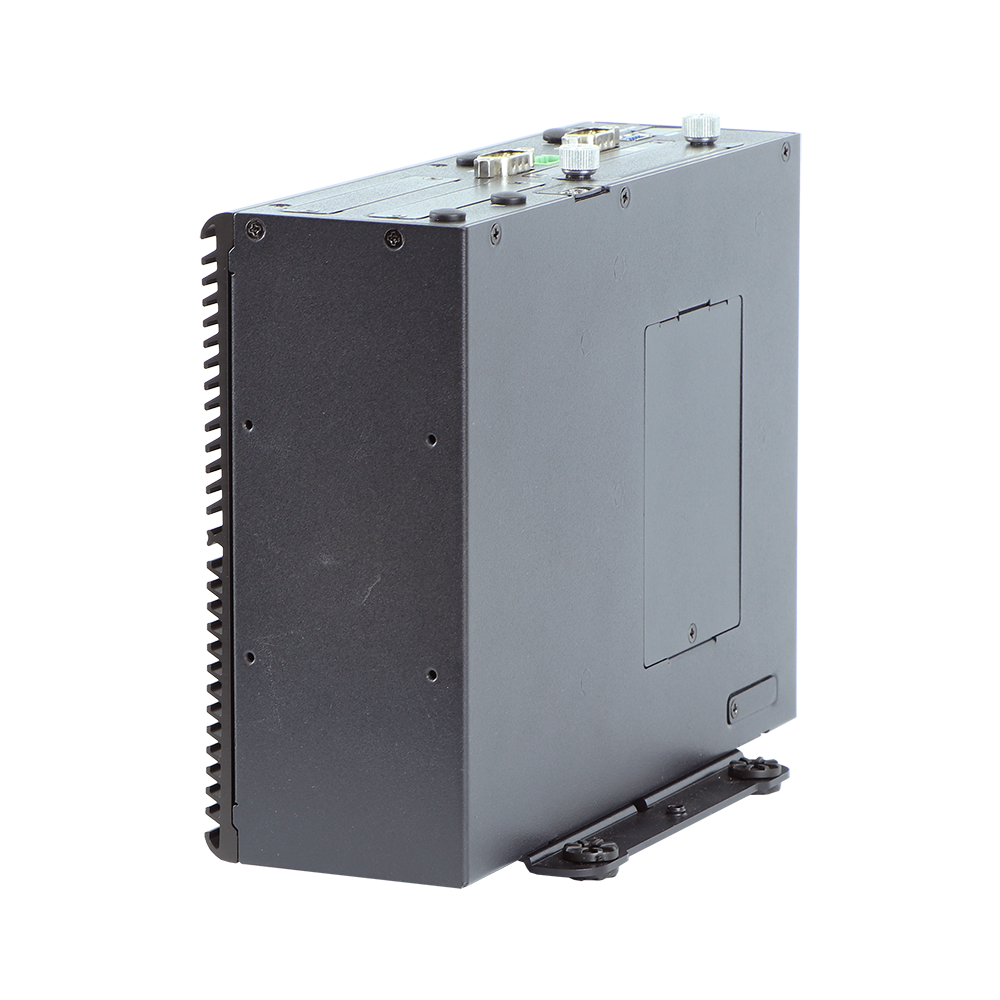

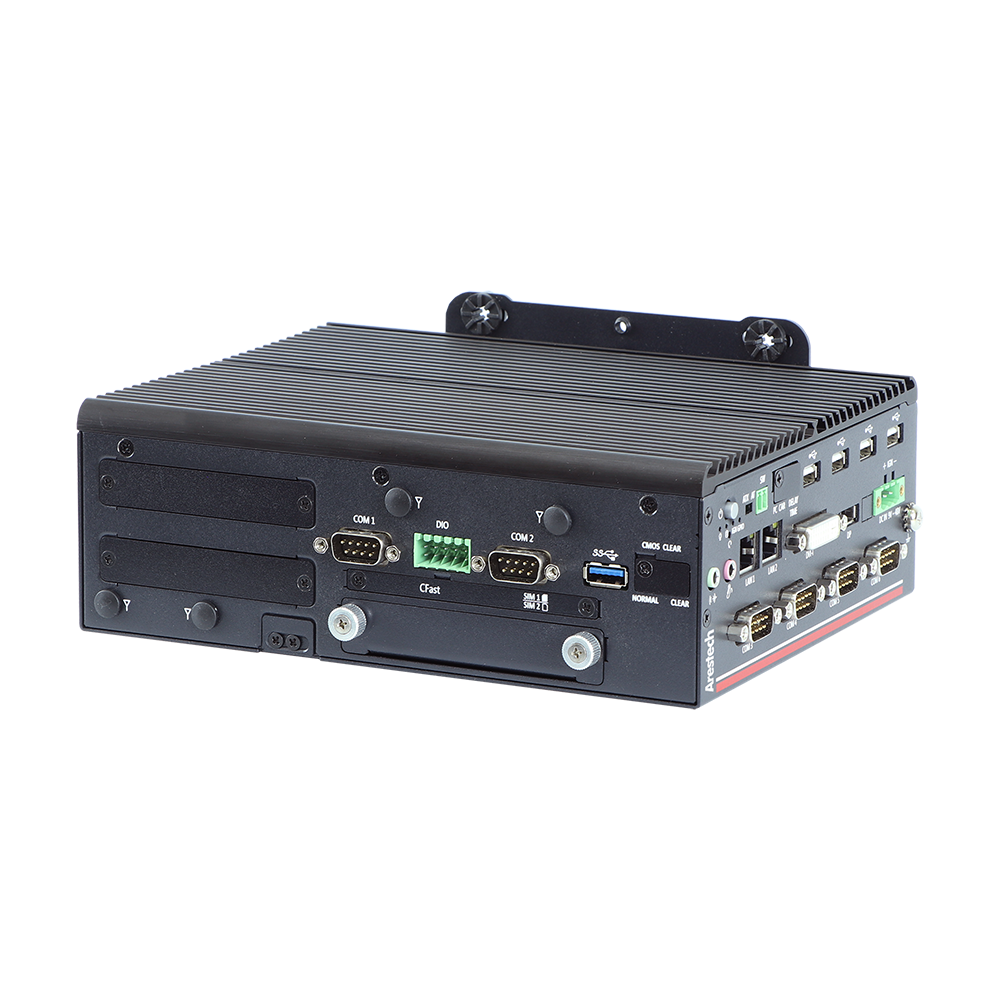

MEVA-2010
Machine Vision Computer with Intel® Atom or Celeron® Processor

  • Quote

  • Datasheet
特点
list_dot_01.pngIntel® Celeron® Processor J1900, up to 2.42GHz
list_dot_01.pngDual Display Supported by DVI-I and DisplayPort
list_dot_01.png1 x DDR3L 1066/ 1333MHz SO-DIMM. Max up to 8GB
list_dot_01.png2 x Intel i210-AT GbE Ports,
   Supporting Wake-on-LAN and PXE
 list_dot_01.png2 x Full-Size Mini-PCIe, 2x SIM Socket
list_dot_01.png9~48V DC Input with Built-in Ignition Power Control
 list_dot_01.png-40°C ~ 70°C Wide Temperature Operation
应用
list_dot_01.pngFactory Automation
list_dot_01.pngMachine Vision
list_dot_01.pngQuality Inspection
list_dot_01.pngMotion Control
list_dot_01.pngDigital Surveillance
Model MEVA-2010 MEVA-2011E
 MEVA-2012E
 MEVA-2012P
Processor System CPU Intel® Celeron® Processor J1900
System Chipset N/A
BIOS
 AMI B IOS, 64Mbit SPI Flash ROM Built on Board
Memory Technology Single Channel DDR3L 1066/1333 MHz SO-DIMM
Max. Capacity 8 GB (Un-buered and Non-ECC)
Socket 1 x DDR3L 204-pin SO-DIMM
Display Graphics Engine Integrated Intel® HD Graphics
VGA
 N/A
DVI-D
 1 x DVI-I (DVI-D+VGA), Resolution 1920*1200
HDMI N/A
Display Port 1 x DP (3840*2160)
Multi Display Yes
I/O Interface USB 5 (1 x USB3.0, 4 x USB2.0)
Serial

6 x COM (RS-232/422/485), with Auto Flow Control, DB9

GPIO 4 x Isolated DI and 4 x Isolated DO Port, 10-Pin Terminal Block
Ethernet
 2 x GbE (2 x Intel® i210-AT GbE LAN Port, Supporting Wake-on-LAN and PXE)
Audio
 Lin out, Mic in
CMOS Battery
 1 x External Clear CMOS Switch
CFast/mSATA
 2 x CFast/mSATA(Colay)
Universal I/O Bracket
 2 x Universal I/O Bracket
Expansion
 miniPCIe/ M.2 Slot
 1 x Full-Size Mini-PCIe Socket (mux with mSATA), 1x Full-size Mini-PCIe (USB2.0 Only)
SIM Socket
 2 x SIM Sockets
Antenna Hole
 4 x Antenna Holes
PCI/ PCIe Slot
 N/A
 1x PCIe X4 Slot (1-lane)
 2x PCIe X4 Slot (1-Lane)
 2x PCI Slot
Storage
 HDD/SSD 1 x Removable 2.5" SATA HDD Bay, 1 x Internal 2.5" SATA HDD Bay
RAID N/A
CFast Socket
 1 x CFast Socket (Shared by mSATA)
mSATA/ M.2 / eMMC 1 x mSATA Socket (Shared by 1 x Mini-PCIe and CFast)
Power
 Power On Model AT/ATX
Remote Power 1 x Remote Power On/O Connector, 2-Pin Terminal Block
Power Supply Voltage
 Power Supply: 9~48V DC (Power Ignition Sensing)
Power Connector Type
 1 x 3-pin Terminal Block Connector
Power Consumption (Max.)
 0.63A @ 24 V (15W), without graphic card
Suggested Adapter (Optional)
 60W Adapter
 60W Adapter
 120W Adapter
 120W Adapter
Battery
 CR2032; 3.3V
Power Connector Type 1 x AT/ATX Mode Switch
Protection
Over Voltage Protection (OVP) Up to 52V
Reverse Voltage Protection (RVP) up to -48V
Over Current Protection (OCP) 20A
Car Mode 1 x PC/Car Mode Switch
Mounting Type
 Wall Mounting / Stand Mounting
Environment
 Operating Temperature -40°C to 70°C (with Industrial Grade Peripherals)
Storage Temperature -40°C to 80°C
Humidity 10%~95% (Non-Condensing)
Vibration
 5 Grms, 5-500 Hz, 3 Axis
Shock
 50 Grms, Half-sine 11 ms
General Certification CE/FCC
Thermal Dissipation Fanless System
Material Extruded Aluminum with Heavy Duty Metal
Dimensions (W x H x D) 73.5x168x215mm
(2.89"x6.61"x8.46")
 107x168x216 mm
(4.21"x6.61"x8.5")
 127x168x216 mm
(5"x6.61"x8.5")
 127x168x216 mm
(5"x6.61"x8.5")
Net Weight 1.8 kg (3.96Ib)
 2.7 kg (5.95Ib)
 2.85 kg (6.28Ib)
 2.85 kg (6.28Ib)
Operating System Windows 10 (IoT / Professional), Linux


Packing List

Description
1 x MEVA-2010 Series Machine
 1 x DVI to VGA Adapter
 1 x Wall Mount Kit



Ordering Information

Part No. Description
MEVA-2010 Intel® J1900 Power-Effcient Fanless Box PC with 2x LAN, 1x USB 3.2 Gen1, 4x USB2.0, 6x RS232/422/485, 1x DVI-I, 1x DP, Lin out,
Mic in, 1x Removable 2.5” SATA HDD Bay ,1x Internal 2.5” SATA HDD Bay, 2x Universal I/O Brackets
MEVA-2011E
 Intel® J1900 Power-Effcient Fanless Box PC with 2x LAN, 1x USB 3.2 Gen1, 4x USB2.0, 6x RS232/422/485, 1x DVI-I, 1x DP, Lin out,
Mic in, 1x Removable 2.5” SATA HDD Bay, 1x Internal 2.5” SATA HDD Bay, 2x Universal I/O Brackets, 1x PCI Express X4 Slot (1-Lane)

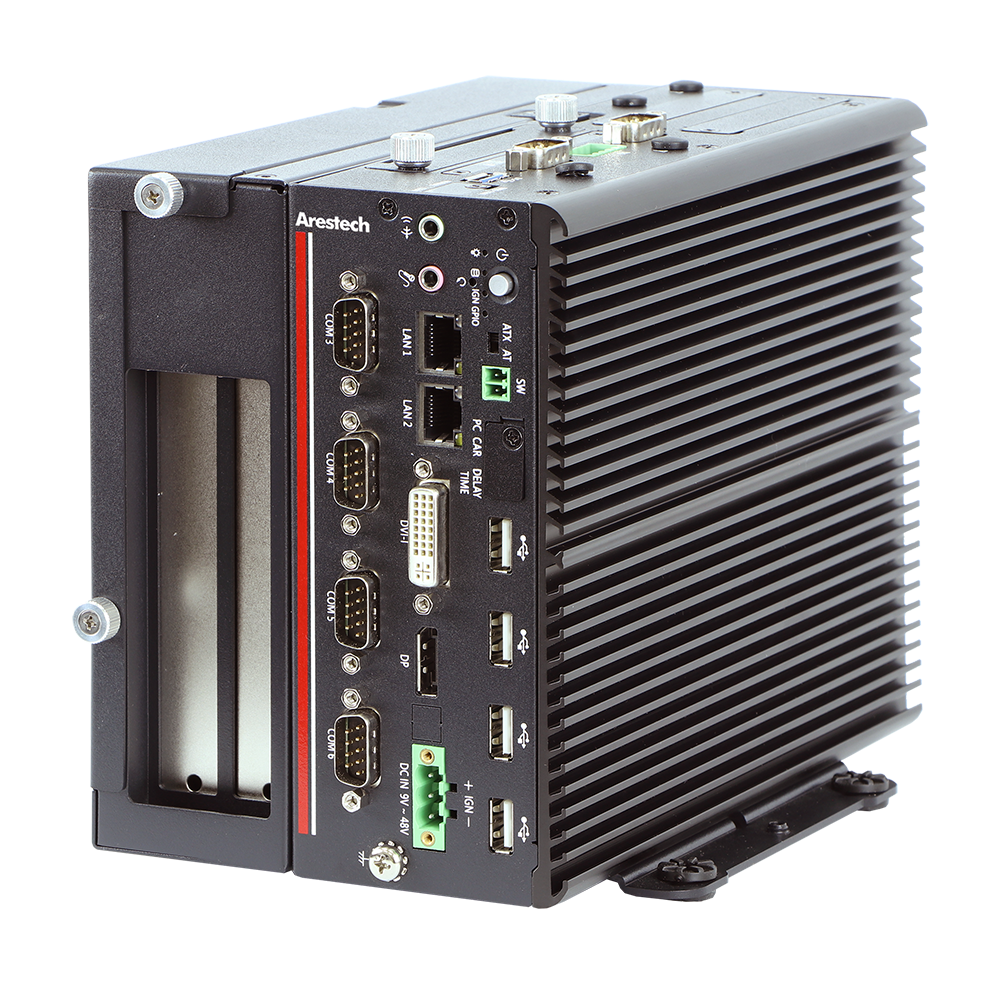

MEVA-2012E
 Intel® J1900 Power-Ecient Fanless Box PC with 2x LAN, 1x USB 3.2 Gen1, 4x USB2.0, 6x RS232/422/485, 1x DVI-I, 1x DP, Lin out,
Mic in, 1x Removable 2.5” SATA HDD Bay, 1x Internal 2.5” SATA HDD Bay, 2x Universal I/O Brackets, 2x PCI Express X4 Slot (1-Lane)
MEVA-2012P Intel® J1900 Power-Effcient Fanless Box PC with 2x LAN, 1x USB 3.2 Gen1, 4x USB2.0, 6x RS232/422/485, 1x DVI-I, 1x DP, Lin out,
Mic in, 1x Removable 2.5” SATA HDD Bay, 1x Internal 2.5” SATA HDD Bay, 2x Universal I/O Brackets, 2 x PCI Slot




Optional Items

Part No.
 Description
AWD-4G003
 4G(LTE) EG25-G+ 2 antenna, Full size (for global)
AWD-WF001
 Wi-Fi 802.11 bgn (1T1R) +1 Antenna (Single band), Half-size mini PCIe
AWD-WF003
 wi 802.11 a/b/g/n/ac/BT4.0 (2T2R) +2 antenna(dual band), mini PCIe Half size
55000-0025-M5
 Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch
55000-0023-M5
 Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch
30100-0003-CA
 Power Cord, 3-pin US Type, 180cm
30101-0005-CA
 Power Cord, European Type, 180 cm
