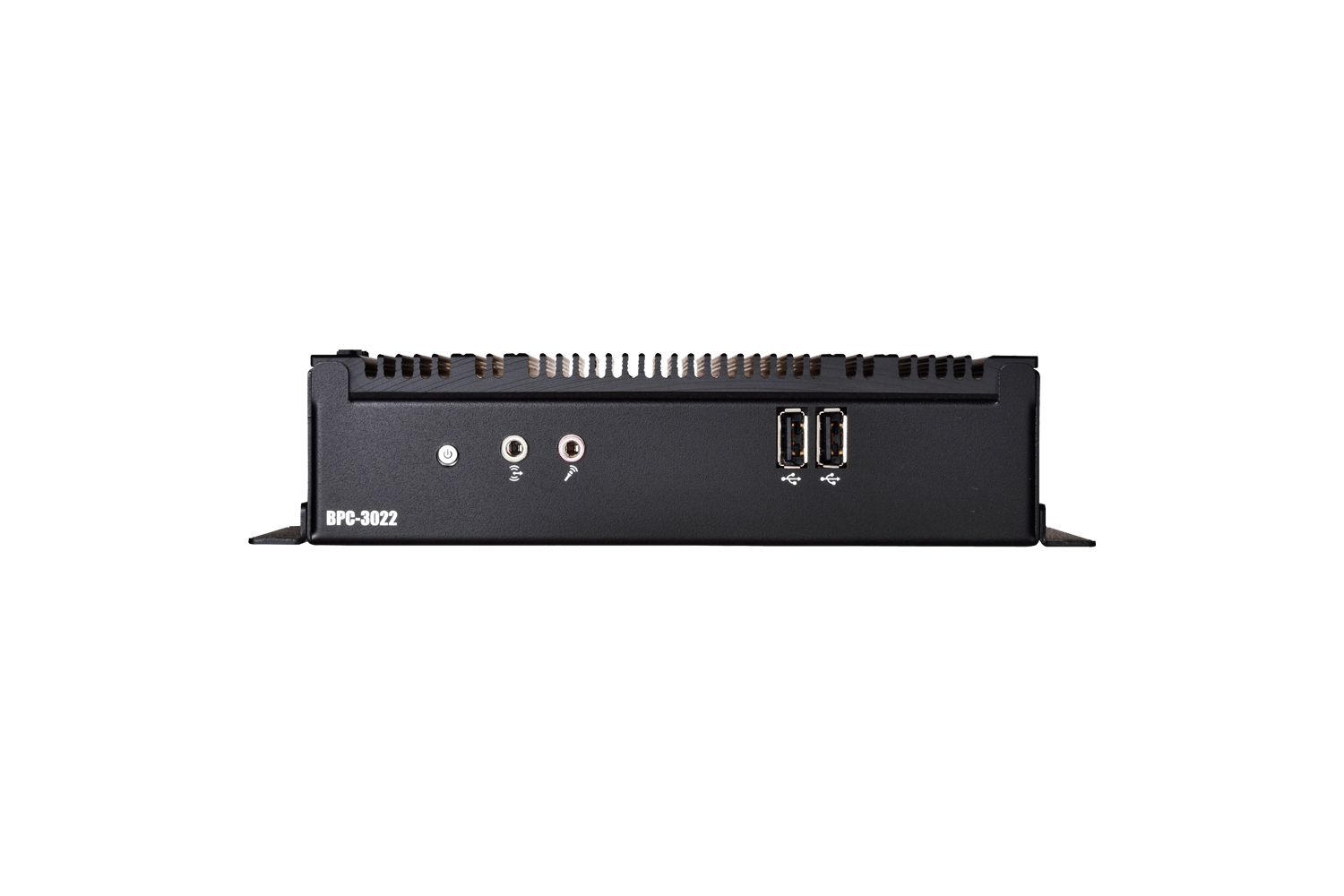

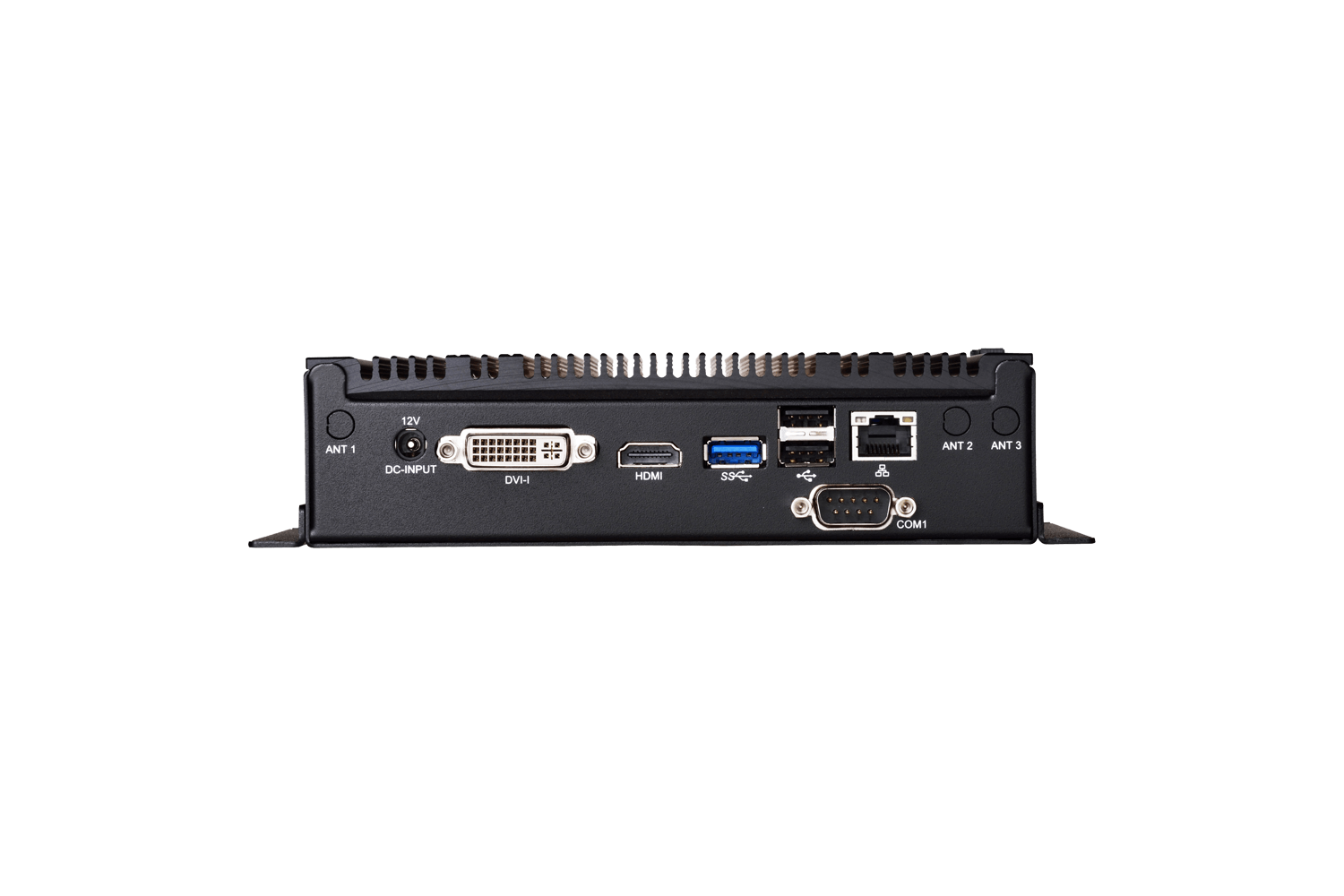

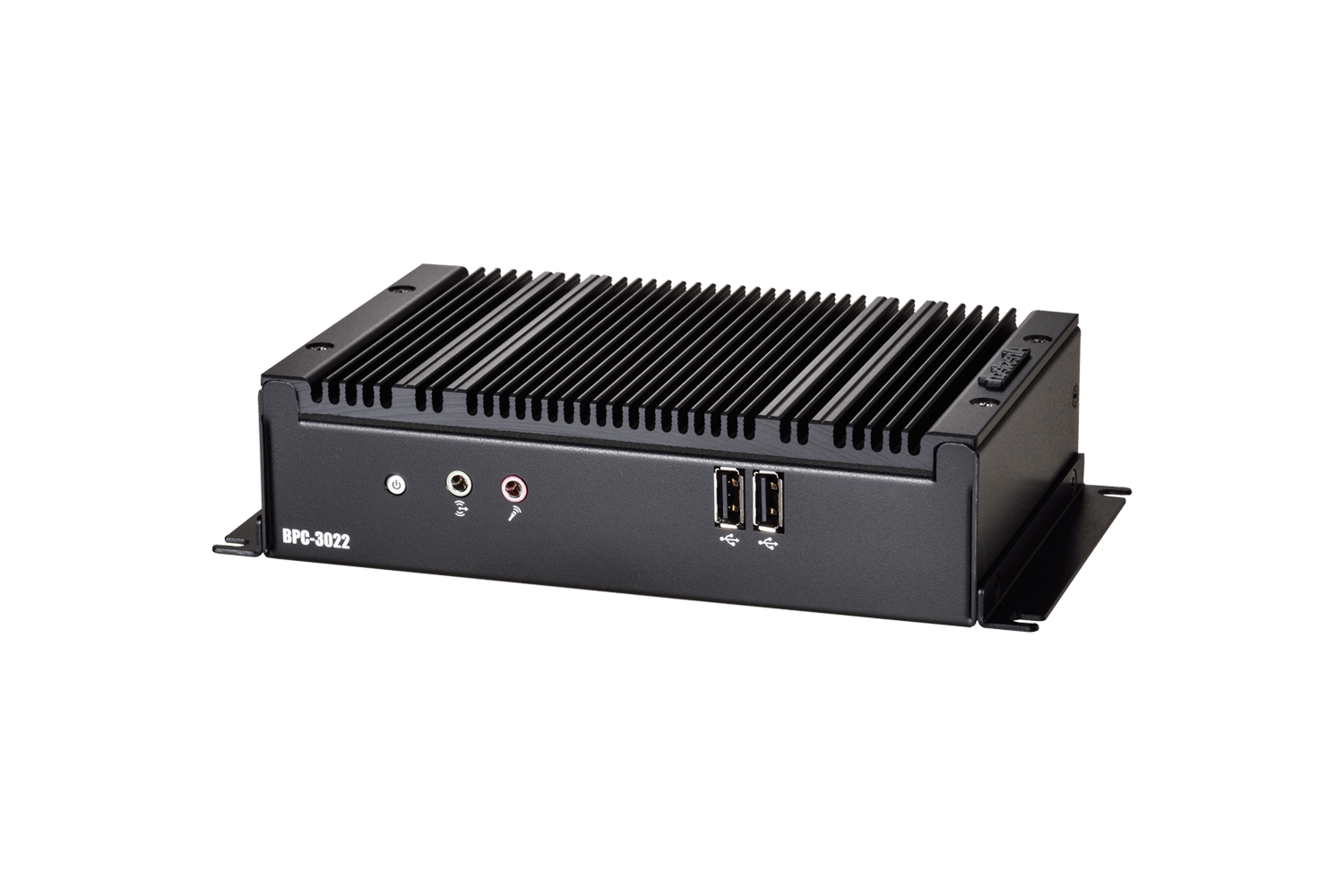

BPC-3022
Fanless Embedded Box PC with Intel® Celeron® N2930 Processor and Multiple Video Outputs
  • Quote

  • Datasheet

  • Driver

特点

list_dot_01.pngIntel® Celeron® Processor N2930 (2M Cache, 1.83 GHz)
list_dot_01.pngCompact Size and Light Weight
list_dot_01.png1 GbE, HD Audio, 5 USB, 1 COM, DVI-I, HDMI, 2 Mini PCIe
   (for WLAN & 3G module)

list_dot_01.png1 SATA HDD/SSD (2.5”), 1 mSATA

应用

list_dot_01.pngBarcode Scanning
list_dot_01.pngEmbedded Control Systems
list_dot_01.pngMedical
list_dot_01.pngDigital Signage
list_dot_01.pngCIM (Computer Integrated Manufacturing)

Model BPC-3022-A1
Processor System CPU Intel® Celeron® Processor N2930
Frequency Quad-Core up to 1.83 GHz
System Chipset N/A
Cache 2 GB
BIOS UEFI
Memory Technology DDR3L 1333 MHz SDRAM (1.35 V only)
Max. Capacity 8 GB
Type 1x 204-pin SO-DIMM
Display Graphics Engine Intel® HD Graphics
HDMI Supports 1920 x 1080, Max data rate: up to 1.65 Gb/s, supports HDMI v1.3 up to 1080p
DP N/A
VGA N/A
DVI Up to 1920 x 1080
I/O Interface USB 1x USB 3.0, 4x USB 2.0
Serial Port 1x RS-232
Ethernet 1x GbE, Realtek RTL8111G, 10/100/1000 Mbps
Audio Line out, Mic in
GPIO / DIO N/A
Antenna Hole N/A
Others N/A
Storage 2.5" HDD / SSD 1x 2.5” HDD / SSD (Max data transfer rate 300 MB/s)
M.2 N/A
mSATA 1x mSATA shared with full-size Mini PCIe slot
RAID N/A
Expansion Mini PCIe 1x half-size slot / Wi-Fi module (optional)
1x full-size slot (USB and mSATA signal) / 4G/LTE module (Optional)
M.2 N/A
PCI / PCIe N/A
SIM Holder N/A
Power Power Mode AT / ATX
Power Supply Voltage Single 12 V DC input
Power Adapter AC-to-DC, 12 V @ 5 A, 60 W
Power Consumption (Typical) 0.72 A @ 12 V (8.64 W)
Mounting Type Wall Mount
Environment Operating Temperature -20~60° C (-4~140° F) w/ 2.5” SSD (Humidity: 60° C @ 80% RH non-condensing)
Storage Temperature -40~85° C (-40~185° F) w/ 2.5” SSD (Humidity: 60° C @ 80% RH non-condensing)
Humidity 5~95% @ 40° C, Non-condensing
Vibration 5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ SSD )
1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ 2.5” HDD)
Shock 50 G, IEC 60068-2-27, half sine, 11 ms duration (w/ SSD only)
20 G, IEC 60068-2-27, half sine, 11 ms duration (w/ 2.5” HDD)
General Certification CE, FCC Class A, CCC
Thermal Dissipation Fanless System
Material Extruded Aluminum
Dimensions (W x H x D) 172.8 x 46.1 x 112.4 mm (6.80” x 1.81” x 4.43”)
Net Weight 0.91 kg (2.0 lb)
Operating System Windows 7/8.1/10, WES7-E/P, WE8S, Ubuntu 14.04

Ordering Information

Part No. Description
BPC-3022-A1 Intel® Celeron™ N2930 Quad-core CPU, 1x USB3.0, 4x USB2.0, 1x RS-232, 1x GbE, 1x HDMI, 1x DVI-I, Line Out, Mic In, DC 12V, DC Jack

Packing List

Description
1 x BPC-3022

Optional Items

Part No. Description
AWD-4G003 4G(LTE) EG25-G+ 2 antenna, Full size (for global)
AWD-WF001 wifi 802.11 b/g/n (1T1R) + 1 antenna , Half size
AWD-WF003 wifi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 antenna(dual band), Half size
