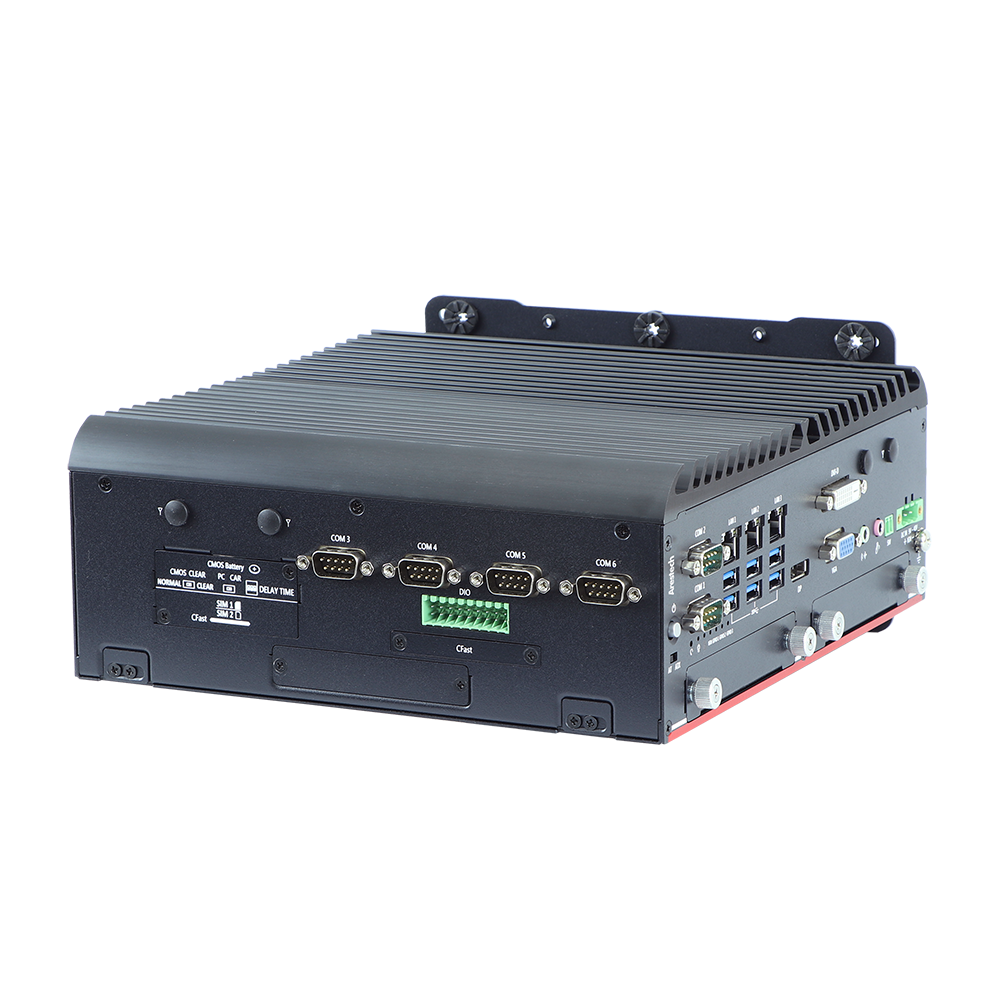

Supports 8th/9th Gen Intel® CFL-R/S LGA 1151 ProcessorsTriple Display Supported by VGA, DVI and Display Port2 x DDR4 2400 / 2666MHz SO-DIMM, Max up to 64GB3 x Intel GbE Ports, Supporting Wake-on-LAN and PXE4 x Removable 2.5“ SATA HDD bay and 4 x Full-Size Mini-PCIe and 4 x SIM Sockets9~48V DC Input with Built-in Ignition Power Control-40°C ~ 70°C Wide Temperature Operation Factory AutomationMachine VisionQuality InspectionMotion ControlDigital Surveillance | Model | MEVA-3110 |
MEVA-3111E |
MEVA-3112E |
MEVA-3113E |
||||
| Processor System | CPU |
Support 8th / 9th Intel® Core™ i3 / i5 / i7 Desktop 35W/ 65W LGA 1151 Processors |
||||||
| System Chipset | Intel® Q370 Express Chipset | |||||||
|
BIOS |
AMI B IOS, 256Mbit SPI Flash ROM on board |
|||||||
| Memory | Technology | Dual Channel DDR4 2400/2666 MHz SO-DIMM | ||||||
| Max. Capacity | 64 GB (Un-bu ered and Non-ECC) | |||||||
| Socket | 2 x DDR4 260-pin SO-DIMM | |||||||
| Display | Graphics Engine | Integrated Intel® UHD Graphics 630 (Core™ i7/ i5/ i3)；Integrated Intel® UHD Graphics 610 (Pentium/ Celeron) | ||||||
|
VGA |
1 x VGA (1920 x 1080) | |||||||
|
DVI-D |
1 x DVI-D (1920 x 1200) | |||||||
| HDMI |
N/A |
|||||||
| Display Port |
1 x DP (3840 x 2160) |
|||||||
| Multi Display |
Yes |
|||||||
| I/O Interface | USB | 8 (6 x USB3.2, 2 x USB2.0) | ||||||
| Serial |
6 x COM (RS-232/422/485), with Auto Flow Control, DB9 |
|||||||
| GPIO | 8 x Isolated DI and 8 x Isolated DO Port, 2 x 9-Pin Terminal Block | |||||||
|
Ethernet |
3 x GbE RJ45, GbE1: Intel® i219-LM GbE(Support Wake-on-LAN and PXE) GbE2~GbE3: Intel® i210-AT GbE (Support Wake-on-LAN and PXE) |
|||||||
|
Audio |
Lin out, Mic in |
|||||||
|
CMOS Battery |
1 x Removable CMOS Battery, 1 x External Clear CMOS Switch |
|||||||
|
CFast/mSATA |
2 x CFast/mSATA(Colay) |
|||||||
|
Universal I/O Bracket |
4 x Universal I/O Brackets |
|||||||
|
Expansion |
miniPCIe/ M.2 Slot |
2 x Full-Size Mini-PCIe Sockets (mux with mSATA), 2 x Full-Size Mini-PCIe Sockets | ||||||
|
SIM Socket |
2 x SIM Sockets |
|||||||
|
Antenna Hole |
4 x Antenna Holes |
|||||||
|
PCI/ PCIe Slot |
N/A |
1x PCI Express X16 Slot |
2, 1x PCI Express X16 Slot, 1 x PCIe X8 Slot (4-lane) |
3, 1x PCI Express X16 Slot, 2x PCIe X8 Slot (4-lane) |
||||
|
Storage |
HDD/SSD | 4 x Removable 2.5" SATA HDD Bay | ||||||
| RAID | RAID 0, 1, 5, 10 | |||||||
|
CFast Socket |
2 x CFast Socket (Shared by 2 x mSATA) |
|||||||
| mSATA/ M.2 / eMMC | 2 x mSATA Socket (Shared by 2 x Mini-PCIe and 2x CFast) | |||||||
|
Power |
Power On Model | AT/ATX | ||||||
| Remote Power | 1 x Remote Power on/o Connector, 2-Pin Terminal Block | |||||||
|
Power Supply Voltage |
Power Supply: 9~48VDC (Power Ignition Sensing) |
|||||||
|
Power Connector Type |
1 x 3-pin Terminal Block Connector |
|||||||
|
Power Consumption (Max.) |
1.58A @ 24 V (38W), without graphic card |
|||||||
|
Suggested Adapter (Optional) |
120 W Adapter |
120 W Adapter |
220 W Adapter |
220 W Adapter |
||||
|
Battery |
CR2032; 3.3V |
|||||||
| Power Connector Type | 1 x AT/ATX Mode Switch | |||||||
| Protection | ||||||||
|
Over Voltage Protection (OVP) Up to 52V Reverse Voltage Protection (RVP) up to -48V Over Current Protection (OCP) 20A |
||||||||
| Car Mode |
1 x PC/Car Mode Switch |
|||||||
| Mounting |
Type |
Wall Mounting / Stand Mounting |
||||||
|
Environment |
Operating Temperature |
35W CPU: -40°C to 70°C 65W CPU: -40°C to 60°C (Optional Internal Fan Kit Is Required) |
||||||
| Storage Temperature |
-40°C to 80°C |
|||||||
| Humidity | 10%~95% (Non-Condensing) | |||||||
|
Vibration |
5 Grms, 5-500 Hz, 3 Axis |
|||||||
|
Shock |
50 Grms, Half-sine 11 ms |
|||||||
| General | Certification | CE/FCC | ||||||
| Thermal Dissipation | Fanless System(35W)；Fanbased System(65W) | |||||||
| Material |
Extruded Aluminum with Heavy Duty Metal |
|||||||
| Dimensions (W x H x D) |
92.6x241.5x231mm (3.65"x9.51"x9.09") |
127x241.5x231 mm (5"x9.51"x9.09") |
148x241.5x231 mm (5.83"x9.51"x9.09") |
168x241.5x231 mm (6.61"x9.51"x9.09") |
||||
| Net Weight |
3.95 kg (8.70Ib) |
5.2 kg (11.4Ib) |
5.35 kg (11.7Ib) |
5.45 kg (12.0Ib) |
||||
| Operating System |
Windows 10 (IoT / Professional), Linux |
|||||||
| Description |

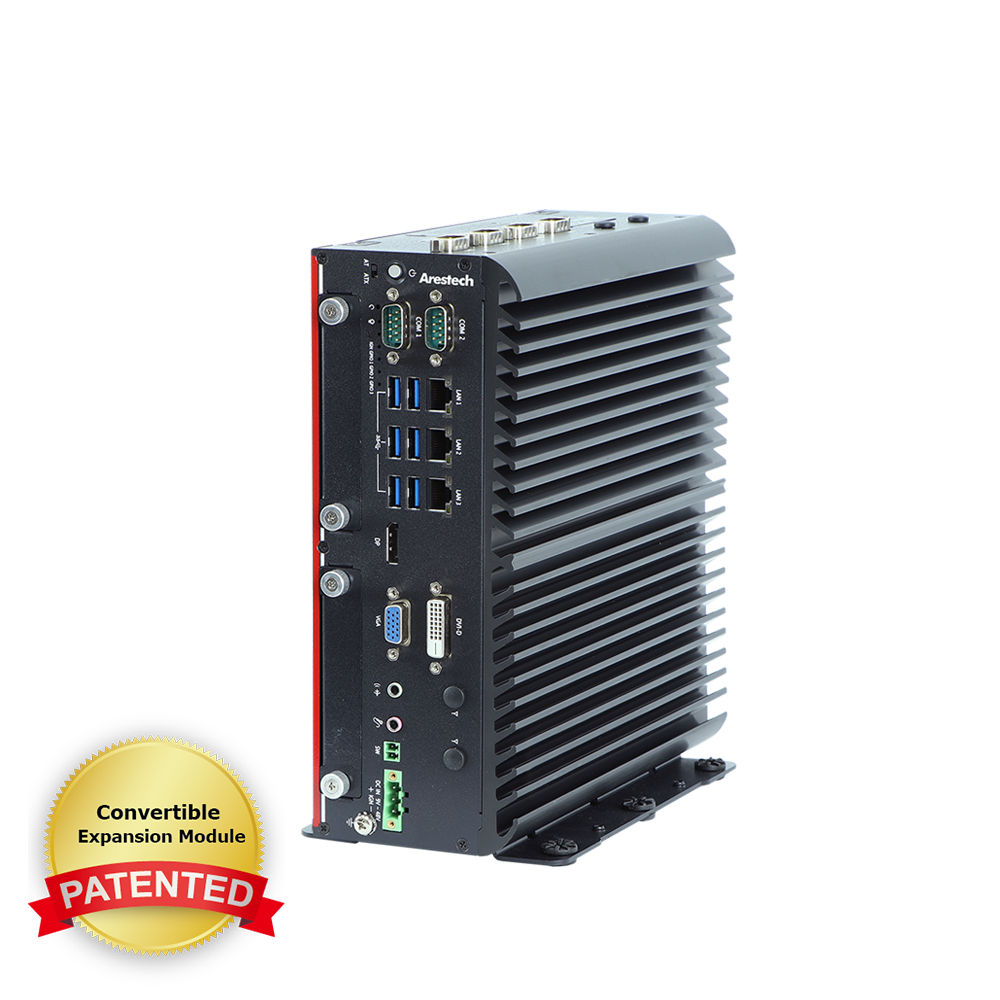

| 1 x MEVA-3110 Series Machine |
|
1 x Wall Mount Kit |
| Part No. | Description |
| MEVA-3110 |
Intel® 9th/8th Core™ i7/i5/i3 Superior Fanless Box PC with 3x LAN, 6x USB 3.2 Gen2, 2x USB 2.0, 6x RS232/422/485, 1x VGA, 1x DVI-D, 1x DP, 4x Universal I/O Brackets, 4x Removable 2.5” SATA HDD Bay |
|

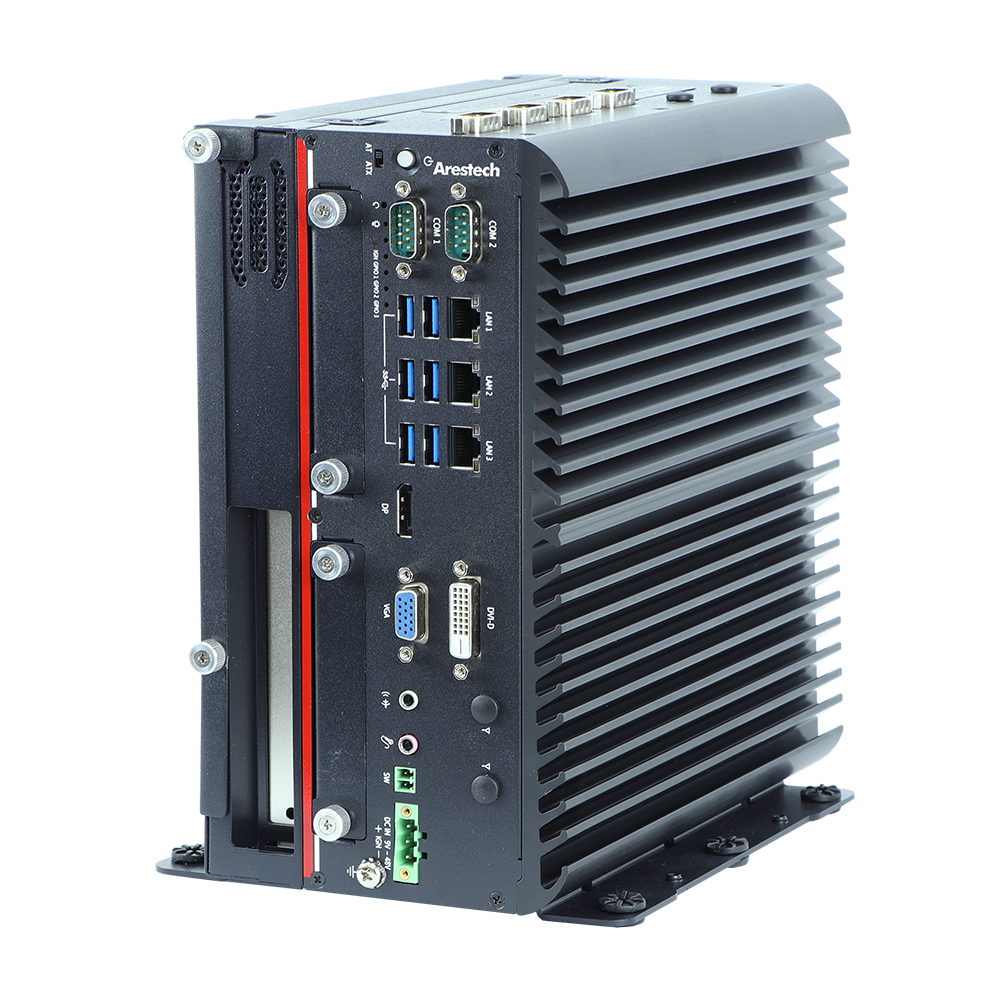

MEVA-3111E |
Intel® 9th/8th Core™ i7/i5/i3 Superior Fanless Box PC with 3x LAN, 6x USB 3.2 Gen2, 2x USB 2.0, 6x RS232/422/485, 1x VGA, 1x DVI-D, 1x DP, 4x Universal I/O Brackets, 4x Removable 2.5” SATA HDD Bay, 1x PCI Express X16 Slot |
|
MEVA-3112E |
Intel® 9th/8th Core™ i7/i5/i3 Superior Fanless Box PC with 3x LAN, 6x USB 3.2 Gen2, 2x USB 2.0, 6x RS232/422/485, 1x VGA, 1x DVI-D, 1x DP, 4x Universal I/O Brackets, 4x Removable 2.5” SATA HDD Bay, 1x PCI Express X16 Slot, 1x PCIe X8 Slot (4-lane) |
| MEVA-3113E |
Intel® 9th/8th Core™ i7/i5/i3 Superior Fanless Box PC with 3x LAN, 6x USB 3.2 Gen2, 2 x USB2.0, 6x RS232/422/485, 1x VGA, 1x DVI-D, 1x DP, 4x Universal I/O Brackets, 4x Removable 2.5” SATA HDD Bay, 1x PCI Express X16 Slot, 2x PCIe X8 Slot (4-lane) |
|
Part No. |
Description |
|
AWD-4G003 |
4G(LTE) EG25-G+ 2 antenna, Full size (for global) |
|
AWD-WF001 |
Wi-Fi 802.11 bgn (1T1R) +1 Antenna (Single band), Half-size mini PCIe |
|
AWD-WF003 |
wifi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 antenna(dual band), mini PCIe Half size |
|
i7-9700TE |
Intel® Core™ i7-9700TE (8-Cores, up to 3.8 GHz, 35W TDP) |
|
i5-9500TE |
Intel® Core™ i5-9500TE (6-Cores, up to 3.6 GHz, 35W TDP) |
|
i7-8700T |
Intel® Core™ i7-8700T (6-Cores ,up to 4.0 GHz, 35W TDP) |
|
i5-8500T |
Intel® Core™ i5-8500T (6-Cores, up to 3.5 GHz, 35W TDP) |
|
i3-8100T |
Intel® Core™ i3-8100T (4-Cores, up to 3.1 GHz, 35W TDP) |
|
AWD-kit2USB30 |
mini PCIe to 2 USB3.0 |
|
AWD-kit2LAN |
mini PCIe to 2 LAN |
|
AWD-kit2COM |
mini PCIe to 2 COM RS 422/485 |
|
5E000-0060-AV |
Internal Fan (70 x 70 x25 mm) Module Kit |
|
55000-0023-M5 |
Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch |
|
55000-0024-M5 |
Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch |
|
30100-0003-CA |
Power Cord, 3-pin US Type, 180cm |
|
30101-0005-CA |
Power Cord, European Type, 180 cm |
