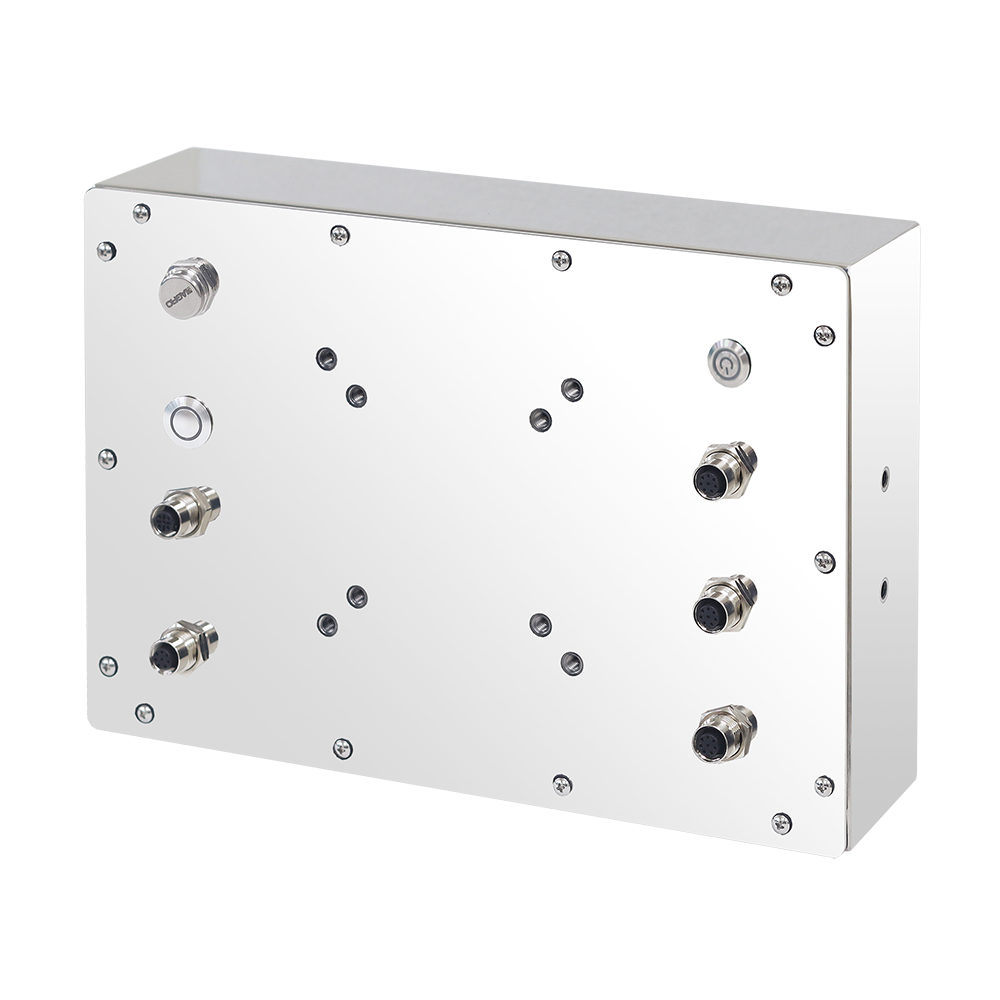

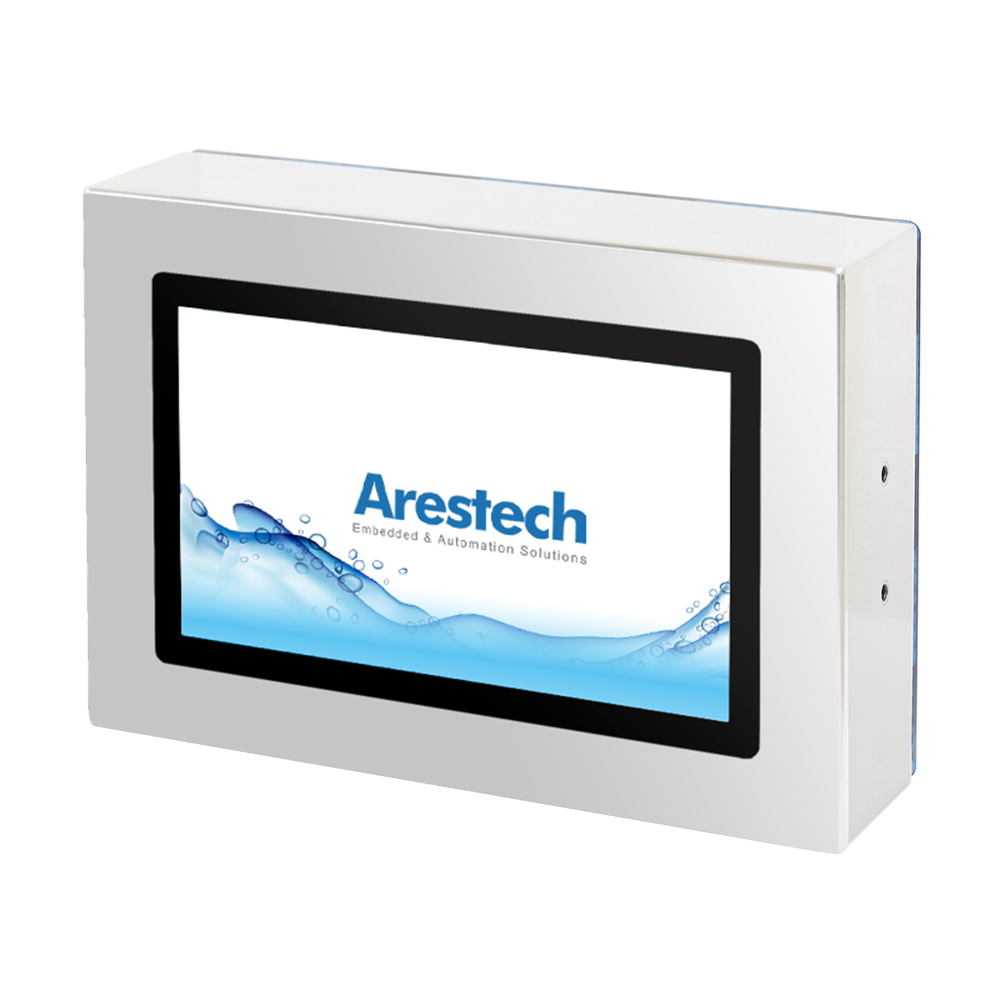

10.1" IP66/69K Stainless Steel 316 Projected Capacitive Panel PC with Intel® Pentium™ N4200 Processor
  • Quote

  • Datasheet

  • Driver


list_dot_01.pngStainless Steel 316, Full IP66/69K Protection
list_dot_01.pngCompletely Flat Front Panel Design
list_dot_01.pngAGRO SS316 Pressure Balance Element,
   Preventing Water Condensation
list_dot_01.pngStainless Steel SUS316, Full IP66/69K Waterproof
list_dot_01.pngSupports VESA, Yoke, and Wall Mount

list_dot_01.pngFood & Beverage Processing
list_dot_01.pngEmbedded HMI Display System
list_dot_01.pngPharmaceutical Equipment
list_dot_01.pngFactory Automation
Model PPC-Z103PW-B61A2
Processor System CPU Intel® Pentium® N4200
Frequency Quad-core up to 2.5 GHz
System Chipset N/A
Cache 2 MB
Memory Technology Dual Channel DDR3L 1866 MHz
Max. Capacity 8 GB
Type 2x 204-pin SO-DIMM
Panel Panel Size 10.1”
Panel Type LCD Panel
Aspect Ratio 16:9
Resolution WXGA, 1280 x 800
Viewing Angle 170 (H) x 170 (V)
Brightness 300 cd/m2
Contrast Ratio 800:1
Response Time 30 msec
Touchscreen Touchscreen Type Projected Capacitive Touch
Surface Hardness 7 Mohs
Durability N/A
Transparency 90% (±3%)
Display HDMI N/A
VGA 1x VGA, up to 2560 x 1600 @ 60Hz (M12 Connector)
I/O Interface USB 1x M12 for 2x USB2.0 (M12 Connector)
Serial Port 1x RS-232/422/485 (M12 Connector)
Ethernet 1x GbE (M12 Connector) (Intel® i211AT)
Audio  N/A
Antenna Hole N/A (Optional)
Others N/A
Storage 2.5" HDD / SSD N/A (Optional)
M.2 1x M.2 2242 M Key (SATA III)
Expansion Mini PCIe 1x Full Size (PCIe x1, USB2.0)
M.2 N/A
SIM Holder 1
Power Power Mode AT / ATX
Power Supply Voltage 9-36V DC Input
Connector Type M12 Connector
Power Consumption (Typical) 1A @ 12V(12W)
Mounting Type VESA Mount (75 x 75, 100 x 100 mm) / Yoke Mount / Wall Mount
Environment Operating Temperature -20~60°C (-4~140° F) w/ Extended Operation Temp. RAM & Storage
Storage Temperature -40~85° C (-40~185° F)
Humidity 5~95% @ 40° C, Non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 Hour per Axis
Shock 20 G, IEC 60068-2-27, half sine, 11 ms Duration
General Certification CE / FCC Class A
Thermal Dissipation Fanless
Ingress Protection Full IP66/69K
Material Stainless Steel 316
Dimensions (W x H x D) 310 x 210 x 79.5mm (12.2" x 8.26" x 3.13")
Net Weight 3.145 kg (7.51 lb)
Operating System Windows 10 (IoT 64 bit/Professional), Linux Kernal 4.0.x or above

Ordering Information

Part No. Description
PPC-Z103PW-B61A2 10.1" 16:9 (1280 x 800), 500 nits, Stainless Steel 316 Full IP66/69K Protection, Fanless Panel PC with Intel® Pentium™ N4200 CPU, Projected Capacitive Touch, 4G RAM, 64G SSD, 1x M12 for 2x USB2.0, 1x RS-232/422/485, 1x GbE, 1x VGA, DC 9~36 V, M12 Connector

Packing List

1x PPC-Z103PW

Optional Items

Part No. Description
APW-60M12V-01 12V, 60W, 5A, 5-pin M12 Connector (US)
APW-60M12V-02 12V, 60W, 5A, 5-pin M12 Connector (EU)
AKT-USB2M12 M12 Connector to 2-port USB2.0 Cable, 2m
AKT-VGA2M12 M12 Connector to DB15 Male Cable, 2m
AKT-COM2M12 M12 Connector to DB9 Cable, 2m
AKT-LAN2M12 M12 Connector to LAN Cable, 2m
AWD-WF006 Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 IP66 Antennas (Dual Band), Half Size
AWD-WF007 Wi-Fi 802.11 b/g/n/BT4.0 (1T1R) + 1 IP66 Antenna (Dual Band), Half Size
ACS-Z101-SWM Stainless Steel 316 Wall Mount Kits, Thickness 3 mm
ACS-Z101-SYK Stainless  Steel 316 Yoke Mount Kits, Thickness 3 mm
