7th/6th Gen. Intel® Core™ Processor up to 3.4 GHzSupports Triple Independent DisplaysSupports BPC-5070-1A1 RAID 0 / 1-20 ~ 60°C Operating Temperature特点
7th/6th Gen. Intel® Core™ Processor up to 3.4 GHzSupports Triple Independent DisplaysSupports BPC-5070-1A1 RAID 0 / 1-20 ~ 60°C Operating Temperature应用
Embedded Digital Signage Control SystemsFactory AutomationImage ProcessingTransportation ManagementMachine Automation| Model | BPC-5070-1A1 | BPC-5070-2A1 | |
| Processor System | CPU | Socket LGA 1151 for Intel® Core™ i7/i5/i3/Celeron (Skylake-S) | |
| Frequency | N/A | ||
| System Chipset | Intel® Q170 | Intel® H110 | |
| Cache | N/A | ||
| BIOS | UEFI | ||
| Memory | Technology | Dual-Channel DDR4 2133 MHz SDRAM | |
| Max. Capacity | 32 GB | ||
| Type | 2x (260-pin SO-DIMM) | ||
| Display | Graphics Engine | Intel® Gen9 Graphics DX 11/12, OGL 4.3/4.4 | |
| HDMI |
3x HDMI HDMI 1: up to 4096 x 2160 @ 60 Hz HDMI 2 & 3: up to 4096 x 2160 @ 30 Hz |

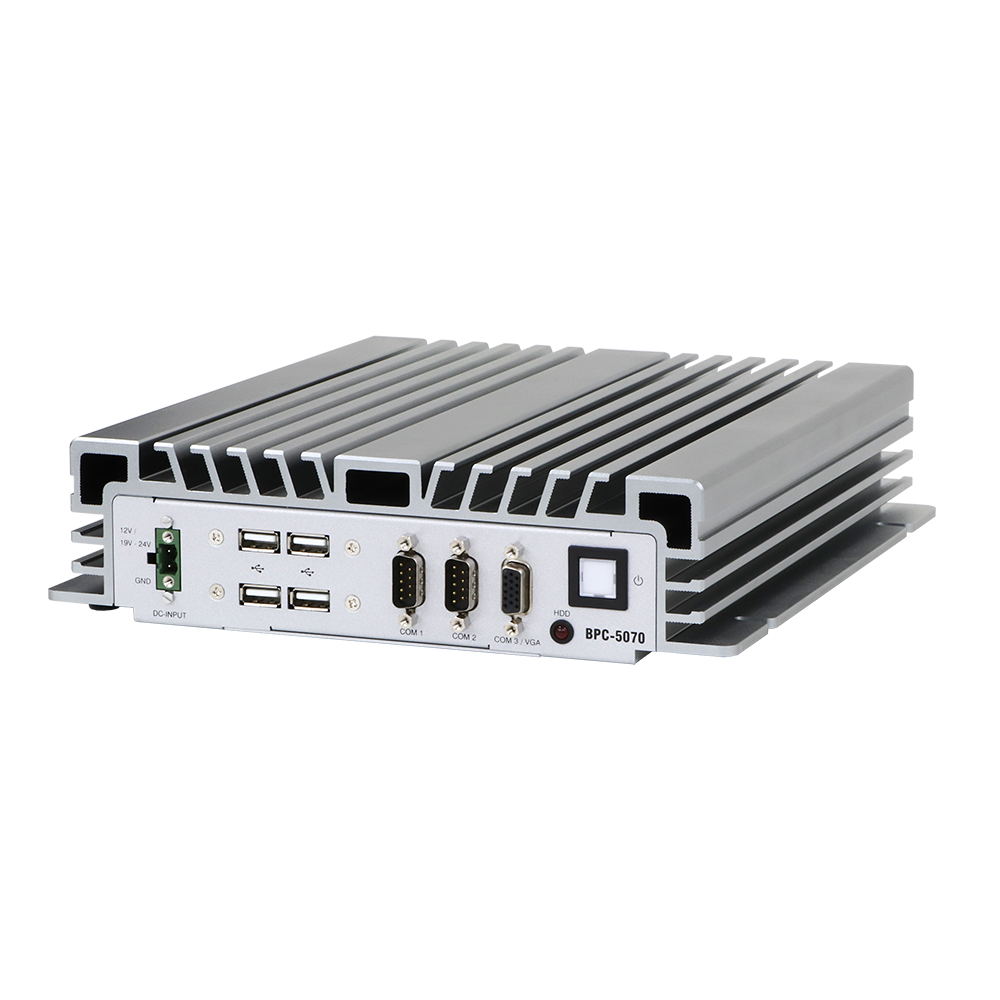

2x HDMI, up to 4096 x 2160 @ 24 Hz | |
| DP | N/A | ||
| VGA | 1x VGA, up to 1920 x 1200 @ 60 Hz | ||
| DVI | N/A | ||
| Front I/O Interface | USB | 4x USB 2.0 | |
| Serial Port | 2x RS-232/422/485 | ||
| Ethernet | N/A | ||
| Audio | N/A | ||
| GPIO / DIO | N/A | ||
| Antenna Hole | N/A | ||
| Others | N/A | ||

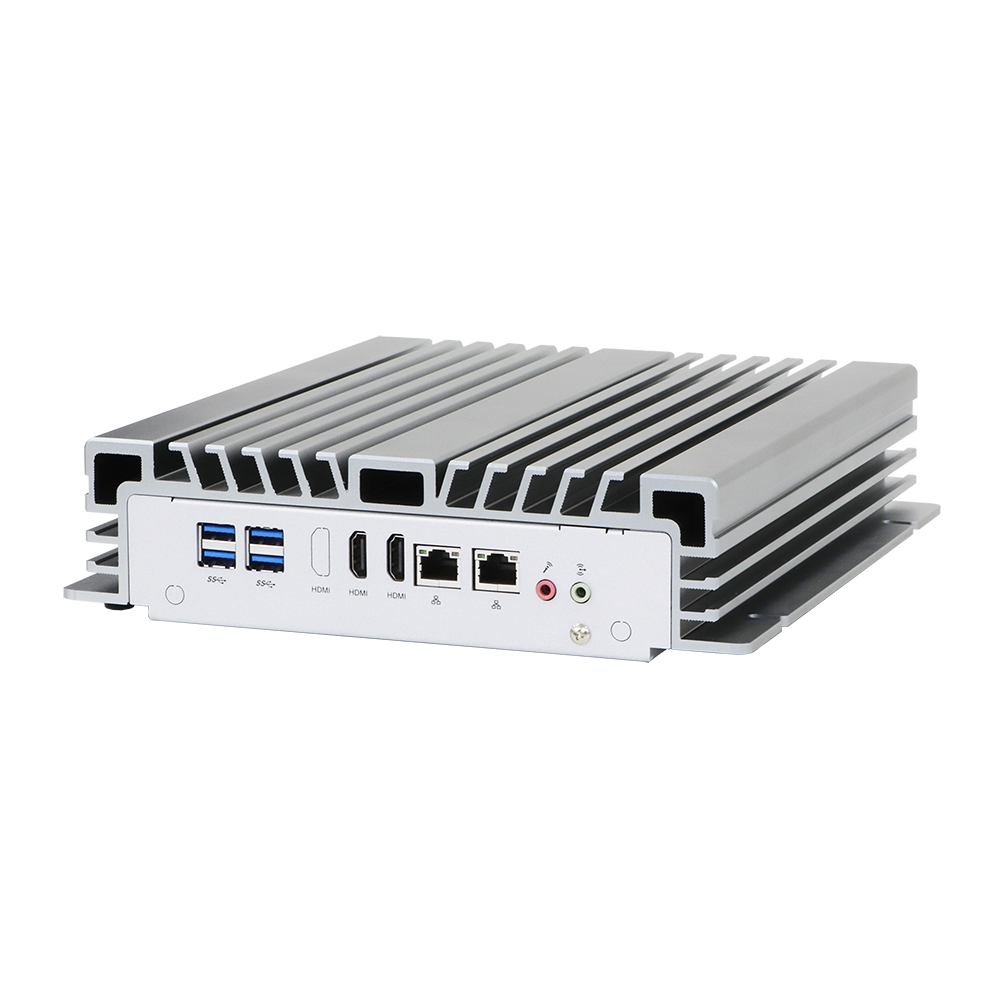

| Rear I/O Interface | USB | 4x USB 3.0 | |
| Serial Port | N/A | ||
| Ethernet | 2x GbE (LAN 1:Intel® I219LM, LAN 2:Intel® I210) | 2x GbE (LAN 1: Intel® I219V, LAN 2: Intel® I210) | |
| Audio | Line Out, Mic In (Realtek ALC887/897 HD) | ||
| GPIO / DIO | N/A | ||
| Antenna Hole | 2 | ||
| Others | N/A | ||
| Storage | 2.5" HDD / SSD | 2x SATA III (6.0 Gb/s), (7 mm 2.5” HDD Only) | |
| M.2 | N/A | ||
| mSATA | 1x mSATA (Mux with mini-PCIe Full Size) | 1x mSATA | |
| RAID | RAID 0/1 | N/A | |
| Expansion | Mini PCIe |
1x Full Size (PCIe x1, SATA III (mSATA), & USB 2.0) 1x Half Size (PCIe x1 & USB 2.0) |
1x Half Size (PCIe x1 & USB 2.0) |
| M.2 | N/A | ||
| PCI / PCIe | N/A | ||
| SIM Holder | N/A | ||
| Power | Power Mode | AT / ATX | |
| Power Supply Voltage | 12/19~24V DC Input | ||
| Connector Type | Phoenix Connector | ||
| Power Consumption (Typical) | 0.8 A @ 12 V (9.5W) | ||
| Mounting | Type | Wall Mount | |
| Environment | Operating Temperature | -20~60°C (-4~122° F) (Humidity: 60°C @ 80% RH Non-condensing) w/ Extended Temp. RAM & M.2 SSD | |
| Storage Temperature | -40~75°C and 60°C @ 95% RH Non-condensing | ||
| Humidity | 5~95% @ 40°C, Non-condensing | ||
| Vibration | 1 Grms, IEC 60068-2-64, Random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes | ||
| Shock | 20 G, IEC 60068-2-27, Half Sine, 11 ms Duration | ||
| General | Certification | CE, FCC Class A | |
| Thermal Dissipation | Fanless System | ||
| Material | Extruded Aluminum | ||
| Dimensions (W x H x D) | 238 x 61 x 245 mm (9.37” x 2.40” x 9.64”) | ||
| Net Weight | 3 kg (6.6 lb) | ||
| Operating System | Windows 7/8.1/10, WES7-E/P, Ubuntu 14.04 | ||
Ordering Information
| Part No. | Description |
| BPC-5070-1A1 | Intel® Core™ i LGA1151 CPU, Q170, 4x USB3.0, 4x USB2.0, 2x RS-232/422/485, 2x GbE, 3x HDMI, 1x VGA, RAID 0/1, DC 12/19~24V, Phoenix Connector |
| BPC-5070-2A1 | Intel® Core™ i LGA1151 CPU, H110, 4x USB3.0, 4x USB2.0, 2x RS-232/422/485, 2x GbE, 2x HDMI, 1x VGA, DC 12/19~24V, Phoenix Connector |
Packing List
| Description | |
| 1x BPC-5070 |
Optional Items
| Part No. | Description |
| AWD-WF001 | Wi-Fi 802.11 b/g/n (1T1R) + 1 Antenna, Half Size |
| AWD-WF003 | Wi-Fi 802.11 a/b/g/n/ac/BT4.0 (2T2R) + 2 Antennas (Dual Band), Half Size |
| i7-6700TE | Intel® 6th Gen Core™ i7-6700TE (8M Cache, 2.40 up to 3.4 GHz) |
| i7-7700T | Intel® 7th Gen Core™ i7-7700T (8M Cache, 2.90 up to 3.8 GHz) |
| i5-7500T | Intel® 7th Gen Core™ i5-7500T (6M Cache, 2.70 up to 3.30 GHz) |
| i5-6500TE | Intel® 6th Gen Core™ i5-6500TE (6M Cache, 2.30 up to 3.30 GHz) |
| i3-6100TE | Intel® 6th Gen Core™ i3-6100TE (4M Cache, 2.70 GHz) |
